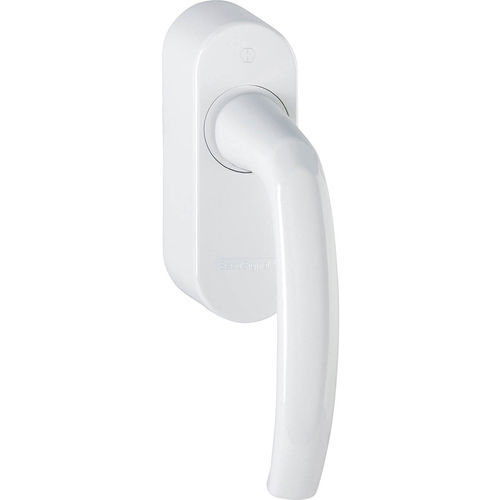

Handle with switching function SRG02

universaldoor with locksteel

Battery- and wireless window handle for status monitoring of windows (lock option available) with radio interface. When actuated, the handle transmits a radio signal with the handle position to a receiving actuator or gateway. The window handle is used to optimize energy consumption in the building, as heating/cooling or ventilation gets deactivated when windows are open. Equipped with a variable length square spindle for profile depths of 32..42 mm for most common window frames. • Application/type : Window contact • Purpose : Room Climate Control • Interface : EnOcean (868 MHz) • Radio technology : EnOcean (IEC 14543-3-10) 868 MHz, transmission power <10 mW, radio telegram, EEP F6-10-00 (RPS) • Data transmission : immediately when turning the window handle, transmission of the handle position (open, tilted, closed) • Operating range temperature (°C) : +5..+40 • Operating ranges temperature (°C) : +5..+40 • Operating range humidity : max. 80% rH non-condensing • Power supply : maintenance-free electrodynamic energy generator • Enclosure : aluminium, stainless steel, locking cylinder optional • Colour : pure white painted, steel grey painted • Mounting : square spindle, variable lengths (for tread depth 32..42 mm) • Packaging length (mm) : 128 • Packaging width (mm) : 65 • Packaging height (mm) : 152 • Device length (mm) : 150 • Device width (mm) : 37 • Device height (mm) : 85
