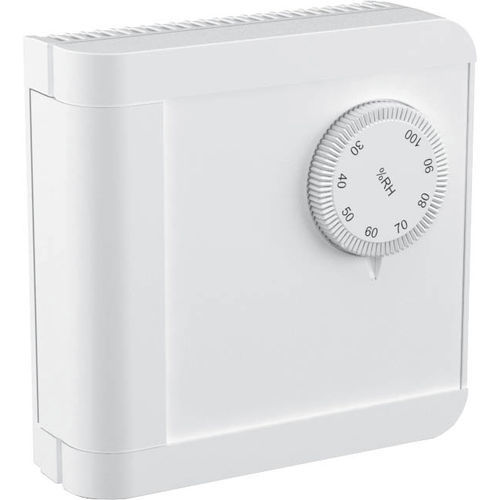

Ambient hygrostat FSR01 active

Hygrostat for ON/OFF control of ventilation and air conditioning, humidification and dehumidification equipment in rooms and office spaces, data centers, warehouses and similar applications. • Application/type : Hygrostat • Purpose : Measure values • Measured values : relative humidity • Interface : Switch contact • Functions : two-position controller • Operating functions : threshold adjustment • Operating elements : rotary button, operated from outside, operated from inside, labelling {drops, 40 [points] 90} • Sensor : Polyga® measuring element, mechanical • Output switch contact : changeover contact, floating, dehumidifying - max. 250 V, 5 (1) A, min. 100 mA, humidifying - max. 250 V, 3 (1) A, min. 100 mA • Operating range temperature (°C) : 0..+60 • Operating range humidity : 30..95% rH • Accuracy humidity : ±3% rH (typ. at 50% rH), average temperature coefficient -0,2% / K (typ. at 20 °C, 50% rH) • Enclosure : PC • Colour : pure white • Protection (IP) : IP30, according to EN 60529 • Connection : terminal block, max. 1,5 mm², cable entry via rear opening, predetermined breaking point (bottom und top) • Mounting : flush-mounted on standard EU box (Ø=60 mm), surface-mounted flat on base using screws, or with frame for surface mounting (see accessories), base part can be mounted and wired separately • Packaging length (mm) : 90 • Packaging width (mm) : 90 • Packaging height (mm) : 35 • Packaging : case packaging • Device length (mm) : 85 • Device width (mm) : 85 • Device height (mm) : 27
