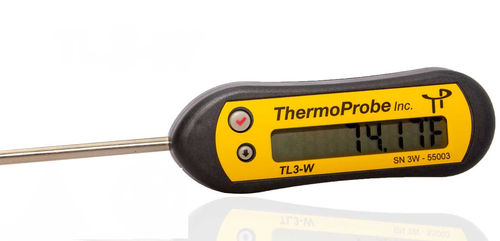

RTD thermometer TL3-Wplatinum resistivewith LCD display°C
Add to favorites
Compare this product
Characteristics
- Technology
- RTD, platinum resistive
- Display
- with LCD display
- Units of measurement
- °C, °F
- Protection level
- full IP65, intrinsically safe, ATEX, weather-resistant
- Configuration
- portable
- Applications
- industrial, laboratory
- Other characteristics
- stainless steel, portable, rugged, ultra-rugged
- Temperature
Min.: -40 °C
(-40 °F)Max.: 204 °C
(399 °F)- Precision
0.06 %
- Resolution
0.01 °C
(32.018 °F)- Response time
6,000 ms
Description
Product Overview
Description
Certifications
Applications
Technical Specifications
- Intrinsically Safe Portable Stem Thermometer for Laboratory and Field Reference – Weather Resistant
Description
- The Intrinsically Safe TL3-W thermometer is the latest full featured version of ThermoProbe’s industry standard TL series. The TL3-W has been certified to the latest global standards for hazardous locations (Ex).
- The TL3-W Platinum Resistance Thermometer (PRT) is a weather-resistant upgrade from the TL3-A. It is powered with 2-AAA batteries providing excellent battery life. A large display and easy to hold design makes the TL3-W convenient for use as a reference in the lab or field. The rugged plastic alloy case and buttons are well suited for use in industrial applications, even with gloves. The TL3-W innovative circuitry provides improved temperature accuracy, response time and battery life.
- Versatile software functions allow easy selection of Celsius or Fahrenheit unit and display resolution. Minimum, maximum and average temperatures are automatically stored to memory for later reference. Low battery display, and failure mode indications protect the user from false data. Encoded Calibration is unaffected by temperature, vibration, or battery removal.
- A one year warranty, protective case and NIST traceable 4 point calibration report are included.
Certifications
- The TL3-W is recognized with international (IECEx) and European (ATEX) safety certificates.
Applications
- Distillations, temperature baths, melting point tests, flash point tests, reference, thermowells, provers, temperature calibration for flow meters.
- See ASTM D8164 Standard Guide for Digital Contact Thermometers for Petroleum Products, Liquid Fuels, and Lubricant Testing.
Technical Specifications
- Interface Features: 0.5" (12.7mm) character LCD; Switchable units °C or °F; Resolution 0.1 or 0.01; Low Battery & Fault indication; Continuous operation or Auto Off after 20 minutes; Stores and displays Average, Lowest & Highest readings; Arrows indicating increasing/decreasing temperature; Recommended ambient temperature range: 32°F to 112°F (0°C to 44°C)
- Construction: Weather Resistant Enclosure; Stainless steel RTD temperature sensor; Static-dissipative plastic housing with a durable polyester graphics window; Nominal body dimensions: 5 x 1.75 x 1.15" (13 x 4.4 x 2.9cm)
- Weight: 5.5oz (156 grams) – with 8" sensor
- Temperature: Resolution 0.01 Degrees; Calibrated Accuracy: ±0.1°F from 14 to 320°F, ±0.06°C from -10 to 160°C; Range: -40°F to 400°F (-40°C to 204°C); NIST Traceable Report of Test; Standard 4 point calibration: 32°F(0°C), 120°F(49°C), 199°F(93°C) & 300°F(149°C)
- Temperature Response Characteristics: 6 seconds in circulated water bath (time response to 63.2% of temp. step change)
- Sensor: Stainless Steel RTD temperature sensor; 100Ω Shock resistant Thin Film Platinum RTD; Standard 8"(20cm) or 12"(30cm) lengths; Standard 0.25"(6.35mm) diameter with 0.188" (4.76mm) reduced tip; Recommended Minimum Immersion Depth: 3" (7.6cm)
- Batteries: 2 AAA Alkaline; Over 450 hours service life at 70°F (21°C); Ambient temperature operating range -4°F to 130°F (-20°C to 54°C); Note: Battery may not provide adequate power if used outside operating range.
- Notes: Specifications subject to change, See data sheet for latest information. Custom ranges, configurations and sensor lengths available upon request.
