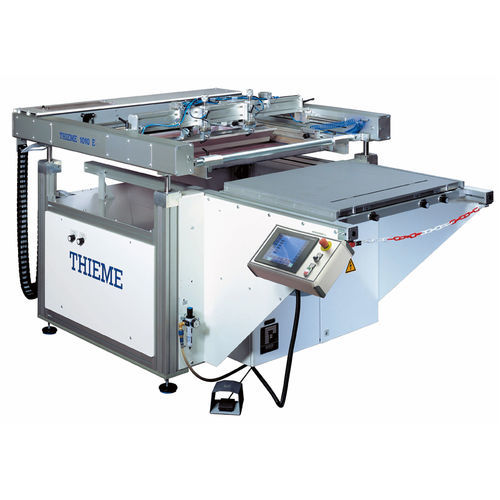

Semi-automatic screen printing machine 1000 E series

colorshuttle tablecompact

Semi-automatic shuttle table screen printing machine with moving print table for printing on rigid and flexible materials as used in electronic applications. • High precision screen printing and easy operation on the highest technological level, max. adjustment to the print requirement • Compact machine design • The whole machine concept allows short set-up times and economic handling • Available with THIEME CleanPrint • The anti-drip feature provides perfect print quality and works well with translucent ink applications • Precise printing results with optional THIEME screen compensation system • The basic machine can be customized on request Why THIEME 1000 E?   • Customer-specific substrate positioning guides • High reproducibility of + / - 50 μm • Precise and fast make ready using the film set-up system • High-precision table adjustment unit • Low depreciation • Thieme quality „Made in Germany“ • Reinforced shuttle print table with 12 mm thick aluminum print surface Specifics  • Precise screen alignment by pneumatic 3-point system • Modern touchscreen panel for user-friendly operation • Pneumatic screen frame release • Adaptation of the basic machine to the customer’s specific requirements • Absolute precision thanks to optional screen tension compensation device • Anti-drip squeegee system (optional) • Automated Clean Print unit (optional)
