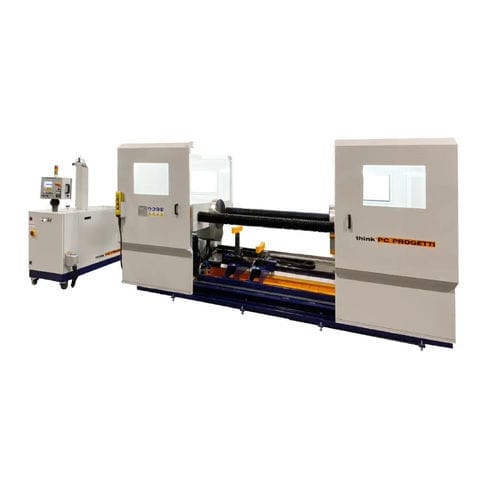

Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by two screwed columns that assure complete absence of external forces on valve body. This prerogative makes it compliant to the most widespread international test standards.
A water vessel is installed in the basement as water reservoir for test procedures.
The rig is controlled by SKA-100 pressurization skid;
REACTION FORCE (SEE WORKING LIMITS TABLE) : 150TON (See working limits table)
MAX LENGTH : 1300mm
MIN LENGTH : 50mm
COLUMNS INNER CLEARANCE : 900mm
FLOW AXES HEIGHT : 990mm
BASEMENT WATER VESSEL : 200Liters
LIFTER : Available as Option
TERMINATIONS ALLOWED : BW, SW, RF, RJ
CLAMPING STYLE : Type 2Inner radial
DIMENSIONS : 2545(L) x 1110(P) x 1170(H)(Mechanical stand)
