Flow test bench BOR-2CV/600

PLC-controlledfor valvesindustrial

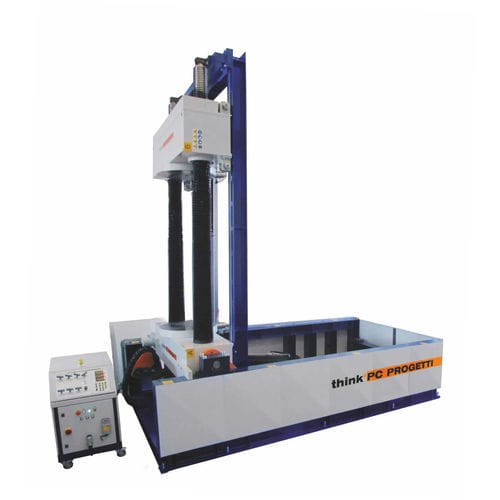

COMBINED CLAMPING W/90° TILTABILITY Horizontal test rig with “combined clamping”. The mobile reaction bridge is moved by one screwed column that assures complete absence of external forces on valve body. This prerogative makes it compliant to the most widespread international test standards. Besides, valve flow axes can be tilted by 90° according to the test position wanted by the customer. In the basement a water vessel is installed as water reservoir for test procedures. Test process is controlled by a SKA-100 pressurization skid. REACTION FORCE : 600 TON (10% minimum press clamping) (see working limits table) LENGTH MAX : 1900 mm LENGTH MIN : 0 mm COLUMNS INNER CLEARANCE : 1400 mm ROTATION ANGLE : 90° LOADING HEIGHT : Vertical 1380 mm / Horizontal 1200 mm BASEMENT WATER VESSEL : 1000 Liters TERMINATION ALLOWED : RF, RTJ, BW, SW CLAMPING STYLE : Type 3 – Combined DIMENSIONS (MECH) HORIZONTAL : 2700(L) x 4300(D) x 1520(H) DIMENSIONS (MECH) VERTICAL : 2700(L) x 4300(D) x 4800(H)
