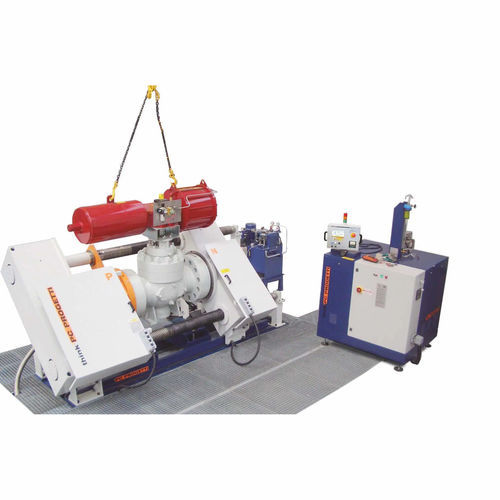

Pressure test bench BO45-2CV/500

durabilityleakflow

Horizontal test rig with combined clamping style: inner radial seal and press clamping facilities. The mobile reaction bridge is moved by two screwed columns that assure complete absence of external forces on valve body and an hydraulic cylinder can make press clamping with or without proportional control. This prerogative makes it compliant to the most widespread international test standards. In the basement a water vessel is installed as water reservoir for test procedures. Complete flow meter sets could be installed (see option) to perform seat leakage tests on control valves. The rig is controlled by a SKA-500 pressurization skid REACTION FORCE : 500 TON (10% minimum press clamping) (See working limits table) VALVE LENGTH MAX : 1760mm VALVE LENGTH MIN : 0mm COLUMNS INNER CLEARANCE : 1160mm FLOW AXES HEIGHT : 1000 mm from the ground BASEMENT WATER VESSEL : 470 Liters TERMINATIONS ALLOWED : BW, SW, RF, RJ CLAMPING STYLE : Type 3 - Combined Inner radial clamping & Pressing clamping with Proportional control. DIMENSIONS : 3450(L) x 2000(P) x 2000(H)(Mechanical structure)
