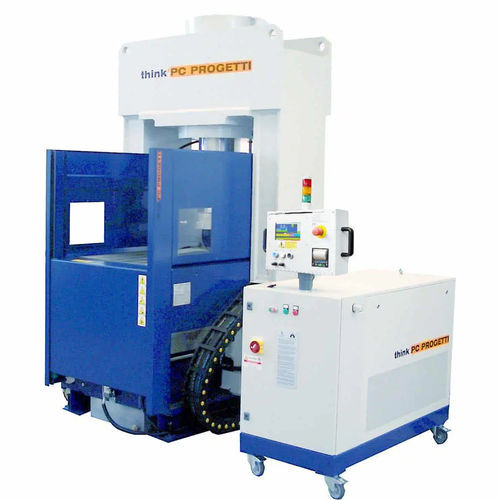

Pressure test bench BV-PMC/500S
durabilityleakautomatic

pressure test bench
pressure test bench
pressure test bench
Add to favorites
Compare this product


Characteristics

Test type
pressure, durability, leak
Operating mode
automatic, PLC-controlled, PC-controllable
Test material
for valves
Sector
industrial
Technology
mechanical, pneumatic, electro-hydraulic
Configuration
vertical

Description

MOBILE BRIDGE PROPORTIONAL PRESS CLAMPING Vertical test rig with controlled pressing clamp; press force is automatically controlled according to the water pressure inside valves, and the result load is reduced to minimal terms. The mobile upper side bridge allows vertical loading of valves and the possibility to have double working stands; while the first is working, the second could be prepared for the next valves. In the basement there is a water vessel and an external water vessel could be added as option. The use of an open castle as an upper side reaction structure allows the user to make visual inspections of valve seats during the test. The rig has an armored steel protection on 3 sides. The front side can be closed by a mobile horizontal sliding gate (optional). A marketing machine is connected directly to control PLC to mark serial numbers on tested piece. The rig is controlled by a SKA-100 pressurization skid The BV-PMC/500S has a valve length from 200 mm to 700 mm, and has a maximum column inner distance of 1000 mm. It has a dimensions of 1460(L) x 2360(P) x 2600(H) mm.
