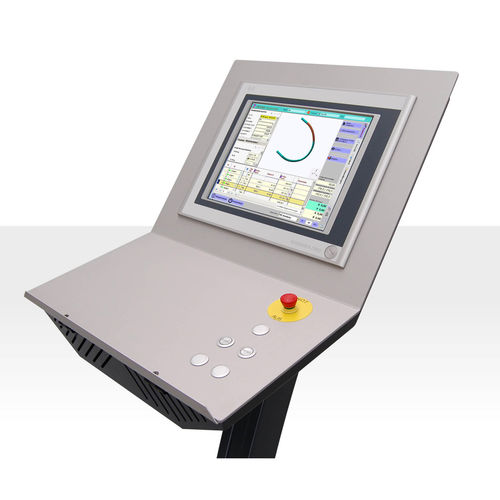

CNC motion controller S

high-performancetouch screenindustrial

The new high end CNC control impresses with the maximum in functionality and diverse possibilities. Program generation and program administration are carried out on a mobile operator terminal. The operator terminal encompasses a high performance industrial PC and the 15″ touch screen. Design and ergonomics satisfy the highest demands. The hardware and software are state-of-the-art technology. The new CNC-S control and the new, revolutionary CNC-S program wizard leave no wish unanswered and offer possibilities that were previously not an option. Program creation takes place even faster, is more simple and more precise.The terminal is equipped with a drawer (A3) for drawings and tech. documents. Order-related documents are therefore always in sight of the operator. Windows 7 embedded serves as the operating system. The machine control can be integrated into existing networks with ease. Data backups to network drives and remote access for online support are possible at all times. FUNCTIONS: Generation of bending contours through entry of radius and angle Generation of bending contours through entry of radius and length Generation of bending contours through entry of LRA (Length Radius Angle) Generation of bending contours through entry of the coordinate intersections XYZ 3D display of the bending contours on the screen Turning, zooming, rotating of the bending contour Tabular display of all contour elements Technology parameters for every contour element Insertion, deletion and merging of contour elements Targeted bending with consideration to the elastic recovery of the material Automatic generation of the machine program (G-Code) Perfect contour element
