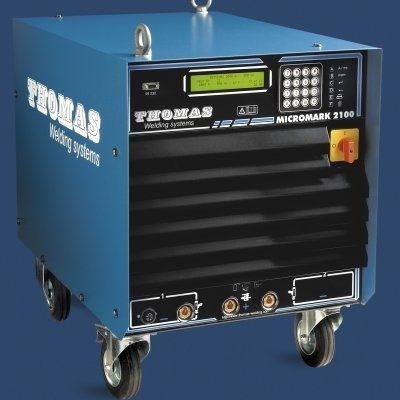

Drawn arc welding generator MicroMark 2100
with generator setfor steelfor stainless steel

drawn arc welding generator
drawn arc welding generator
Add to favorites
Compare this product


Characteristics

Technique
drawn arc
Power supply
with generator set
Material
for steel, for stainless steel
Intensity

Min.: 100 A

Max.: 2,100 A

Weld thickness

Min.: 3 mm
(0.1 in)

Max.: 22 mm
(0.9 in)

Description

drawn arc stud welding unit : This line of stud welding equipments is a unique, fully programmable, microprocessor-controlled stud welding system with great versatility and near-perfect reliability. Features include : - 9 memories, - Immediate digital verification of all weld parameters, - Diagnosis of weld and system deviations, - Self-monitoring system, - Computer/printer connection, - Large display .... In other words, you'll get a perfect weld every time - or no weld at all. And in either case, you'll know why ! Short Cycle Range - : - M 3 to M 12 Weldable Materials - : - Steel, Stainless Steel and Aluminium (with Gas) Welding time - : - 12 mS to 1400 mS Supply voltage - : - 230 V / 400 V - 63 A Size (w x h x l) - : - 520 x 730 x 820 mm Weight - : - 245 Kg Inert Gas - : - IP 21 Optional - : - - Inert gas - 2 outputs with separate settings
