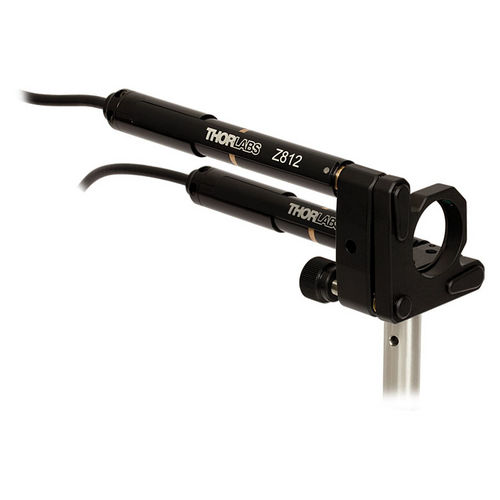

Motorized mirror holder KS1 Series

Features Ultra Stable Ø1" Mirror Mounts Two Motorized Actuators, One Manual Actuator ±4° Pitch and Yaw Adjustment Thorlabs offers the popular Ultra-Stable KS1 Ø1" mirror mount in two motorized versions. The KS1-Z8 mounts come with two of our Z812 DC Servo Motors, while the KM1-ZST includes two of our ZST13 Stepper Motors. Each mount also includes a 1/4"-80 threaded adjuster, which allows for greater pitch and yaw adjustment over standard two adjuster mounts. KS1-Z8 The KS1-Z8 uses two of our Z812 DC Actuators, which are equipped with commercial grade internal limit switches to provide over drive protection. The motors also have an encoder to provide 6 arcsec angular resolution. Our TDC001 single channel T-Cube DC servo motor controller is ideally suited for use with this Z812 motorized mount. Appropriate power supplies for the TDC001 are below. Note that if you will be using a Z8 series DC Servo Motor with a previously purchased TDC001, you may need to update your firmware to version 1.0.10 or later. This update is included in the APTServer Software download. KS1-ZST The KS1-ZST uses two ZST13 Stepper Motors that offer 24 full steps and 128 microsteps per full step. Due to friction, these stepper motors are thus able to provide an angular resolution of 1 arcsec. The TST001 single channel T-Cube stepper motor cont
