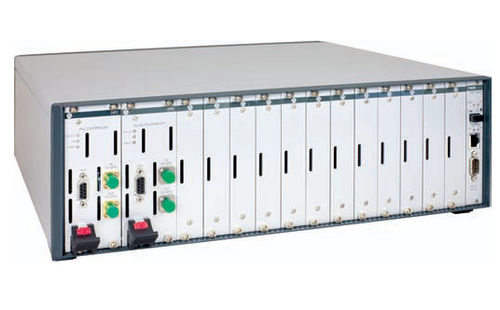

Electrical network analyzer PMD5000

powerbenchtopin-line

Two Basic Systems to Choose From Fast In-Line PMD/PDL Analysis System for Fibers: PMD5000FIN High Dynamic Range PMD/PDL Analysis System for Narrow Bandwidth Components: PMD5000HDR Features of the Modular PMD/PDL Analysis System PMD5000 Measurements Based on Jones-Matrix Eigenanalysis (JME) 2 Polarimeter Versions: Rotating Waveplate or Fiber Based Bandwidth from 1520 to 1630 nm (others on request) Modular and Flexible Excellent Accuracy For External Tunable Laser Sources Introduction The PMD5000 is a modular system for Jones Matrix Eigenanalysis based PMD/PDL measurements built onto the TXP platform. It is a powerful and flexible solution for all kinds of PMD/PDL related measurement tasks in laboratories as well as field applications including the analysis of installed fibers. Modular Design Depending on the application the PMD5000 System comprises different modules that can be used independently as well. The PMD5000 utilises external tunable lasers as light source. We can integrate most tunable lasers with a PC interface. Drivers for the following models are readily available: Agilent Mainframe 8163A/B, 8164A/B, 8166A/B, and Module 81940A as well as Ando AQ4320A/B/D.
