Optical cuvette CVH100

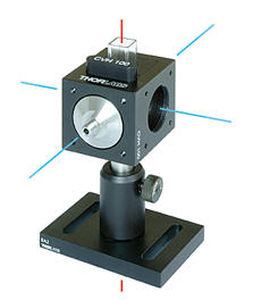

Features Accommodates Micro or Macro Cuvettes Z-Dimension Beam Height: 8.5 mm SM1 (1.035"-40) and 30 mm Cage Compatible Post Mountable via 1/4"-20 (M6) Tap Designed to accommodate standard micro and macro cuvettes, the CVH100 Cuvette Holder can be used in fiber or free-space applications.The holder features four SM1-compatible (1.035"-40) light ports, thereby offering two perpendicular light paths for transmission and fluorescence measurements. Both optical axes (blue lines in the photo to the right) and the axis for the post mount (red in the photo to the right) have a common crossing intersection point, which allows the user to turn the holder while maintaining the alignment to the optical axes in free space applications. When purchasing small volume or window cuvettes, a 'Z' dimension is often specified. This 'Z' dimension is the length from the bottom of the cuvette to the center of the sample chamber window on the cuvette. The CVH100 and the included fiber adapter are designed such that the beam height will be 8.5 mm above the bottom of the cuvette (see the Specs tab for a diagram).
