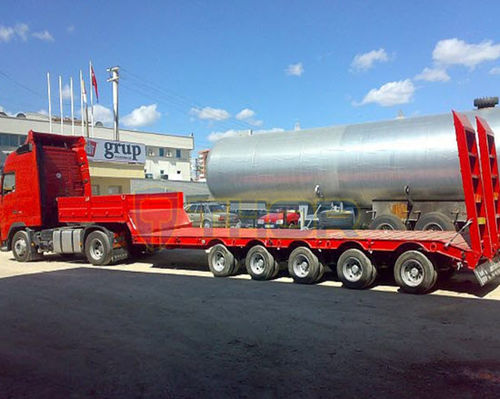

Platform trailer

5-axletowedfor industrial materials

5 AXLE LOWBED TRAILER TECHNICAL INFORMATION Lowbed 5 Axle has capacity between 60-120 tons.Pool Type Platform, Flat platform, front loading types can be produced in different dimensions. ENHANCED FEATURES 5 axle lowbed is generally used for carrying 60-120 Tons capacity loads.These5 axle lowbedcan be both platform and pool type and we have a flexibility on the specifications. We have different options to solve your load problem. With our technical team we can manufacture high quality 5 axle lowbed . CAPACTIY: 60-120 Tons capacities CHASSIS AND STRUCTURE: Lowbed rack is welded by submerged welding machine from 20 mm x 150 mm STS2.3 Quality steel bottom and top flatsteel and 10 mm STS2.3 hub plate. It has "I" section and also includes 4 pes •Rack Is supported with 160 NPI axle beams that crosses rack . •It has been produced in welding constructions with gas metal arc welding as "I" crossing from high resistant steel considering overloads proper to capacity and intended usage. •Total Length: 11700-13700 mm varies according to demand. lowbed can be extendable. •Total Width: 2550 mm- 3300 mm varies according to demand AXLES: 5 pes Axles, each one is with l2-14-16 tons capacity according to the trailer drum or disc brakes, hub centric, with 10 wheel nuts, and automatic slack adjuster. LOADING RAMPS: Manufactured with air or hydraulic piston from NPU with 160 BRAKE SYSTEM: The WABCO or Haldex brand ABS or EBS brake system which is designed according to the European Standards is used .It consists of automatic brake ratchets, brake valves and brake bellows of 30.
