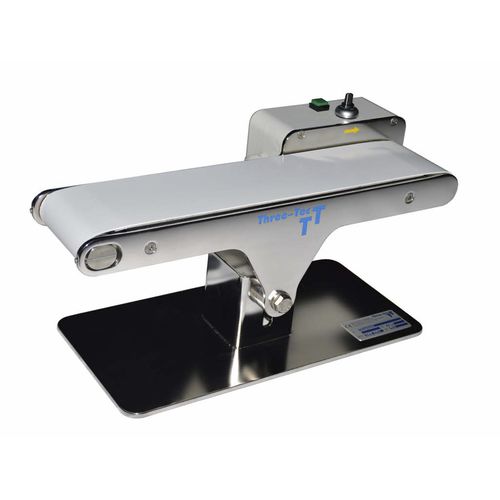

Continuous conveyor belt plasticsiliconindustrial
Add to favorites
Compare this product
Characteristics
- Type
- continuous
- Material
- plastic, silicon
- Sector
- industrial, for the food industry, for the chemical industry
- Applications
- process, for cooling systems, for polymer strand extrusion, for tube and profile extrusion
- Tolerance
- high-resistance, heat-resistant, cold-resistant, corrosion-resistant
- Width
100 mm
(3.94 in)- Length
Min.: 500 mm
(19.7 in)Max.: 2,000 mm
(78.7 in)
Description
The conveyor belt is suitable for the gentle removal and cooling of the extrudate. In order to achieve more efficient cooling of the extrudate, a cooling tank, on which the belt rests and is continuously cooled, or an air cooling system can be integrated as an option. This enables the removal of extrudates with a temperature of up to 300 °C.
The belt speed can be set variably between 0 and 6.5 m/min. The conveyor belt is controlled by means of an integrated potentiometer or optionally directly via the control of the Three-Tec extruder.
• Material conveyor belt: silicone or PTFE
• Integrated or external control
• Belt speed: 0 to 6.5 m/min
• Max. product temperature: 300 °C
• Height and belt angle adjustable
• Optionally with cooling tank (water/air)
