Vision system with camera for inspection tasks HOT mass

vision system with camera for inspection tasks
vision system with camera for inspection tasks
vision system with camera for inspection tasks
Add to favorites
Compare this product


Characteristics

Options
with camera for inspection tasks

Description

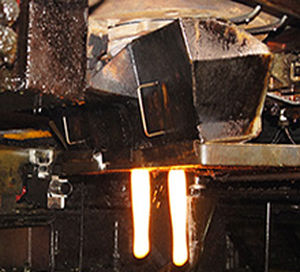

Tiama HOT mass is the Tiama solution for gobs forming control. The Tiama HOT mass consists of one or more line scanning cameras located just under the shear cut. The cameras take pictures of the gobs which are then analyzed by the system. Tiama HOT mass have 3 main features: - Gob shape monitoring: length and diameter measurements of the gobs - Gob weight control (optional): regulation of the weight thanks to two closed loops adjusting the tube height and the needles positions keeping the gob weight stable - Gob temperature monitoring The Tiama HOT mass is a monitoring solution to help customers to improve the management of their process and to reach their quality level. The Tiama HOT mass belongs to the Tiama HOT systems range, a complete set of modules which gives key information on the process from the gob to the formed articles. The Tiama HOT mass is also part of the smart factory concept developed by Tiama, the system provides a full range of data which can be used in order to have a global overview of the plant, from the hot-end to the cold-end.
