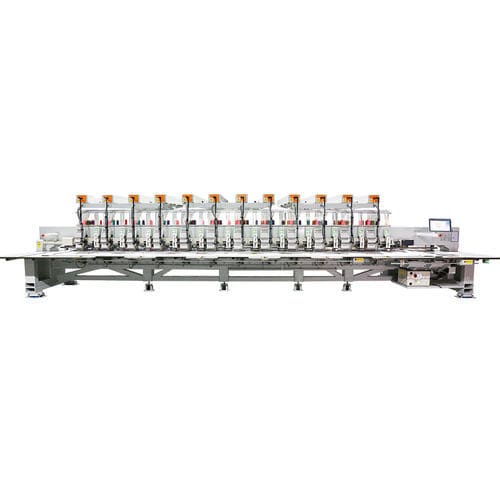

Multi-head embroidery machine RPCE-NM-FE+CT series

9 needleshigh-speedflat

Coiling, cording ortaping embroidery process for apparel, home textile, furniture, bag and luggage, etc. 1. Richpeace Model Ⅲ mixed coiling embroidery electronic control,tracking motorindependently controlthe coiling/taping head, more accurate control, more convenient operation. 2. Equipped with two cord/tape spools on each head,to realize diversified special embroidery including coiling embroidery, cording embroidery,tape embroidery and zigzag stitch embroidery. 3. Max. Speed of Cording/Taping/Zig-zag Embroidery: 850rpm. 4. Zigzag stitch swing： swing range can be adjusted on operation panel, within range of 0-25mm,to avoid collision with needle when performing thick cord embroidery work. 5. According to materialthickness, presserfootlifting adjustable range is 0-6mm. Equipped with 6 types of zigzag stitch pattern, according to different characteristics and patterns ofthe cords ortapes, you can choose the right stitch for embroidery. ① Fast switch between flat embroidery and tape embroidery manually or automatically. ② By changing different guiding nozzle, achieve more special and higher-end embroidery Standard Embroidery ① Richpeace Model Ⅲ computer control system, 15.6 inch LCD touch screen, screen refresh rate 50ms/ time,realtime dynamic display. ② Latestthread clamping system and guiding tubes make it go smoothly and independently without entangled, less thread breakage. ③ Lead screw color change, speed as fast as 1.2 seconds for 9needles, greatly improved multifunctional embroidery efficiency. ④ Widened transmission linear guide rail, lower noise, longerlife.
