Gas analyzer ZWIN-PM10

monitoringconcentrationfor integration

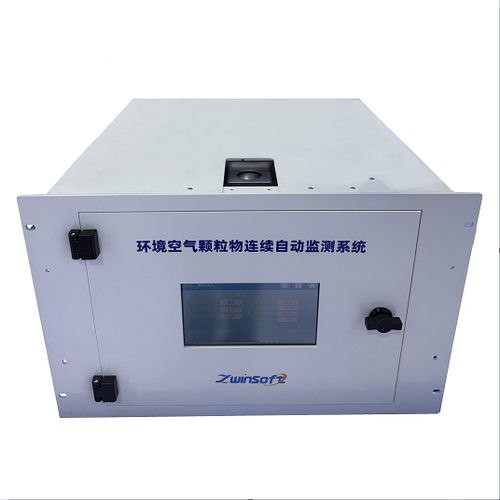

ZWIN-PM10 Ambient Air Particulate Continuous Monitoring System Application Fields Widely applied in: Ambient air quality monitoring Particulate matter characterization Atmospheric background measurement Pollution forecasting and early warning Environmental assessment and permitting Key Features Utilizes low-radiation C14 β-ray source with complete radiation protection, ensuring safety and reliability with zero radiation leakage Integrated particle collection and detection channel eliminates errors caused by filter paper movement Dynamic Heating System (DHS) with temperature compensation enhances data validity Features bilingual Chinese/English interface with graphical display, stores over 1 year of data, offers easy installation/maintenance, simple operation, low operating costs, and supports paper-saving mode Technical Specifications Parameter - Specification Measurement Range - 0-1000 μg/m³ or 0-10000 μg/m³ Resolution - 0.1 μg/m³ Sampling Flow Rate - 16.67 L/min Measurement Principle - β-ray absorption method
