Analog oscilloscope ATS5004D

analog oscilloscope
analog oscilloscope
analog oscilloscope
analog oscilloscope
Add to favorites
Compare this product


Input signal
Number of channels
Options and accessories
USB, for PC, compact, high-resolution, computer-controlled, high-definition, multi-function, insulated, serial decoder, with logic analyzer

50 MHz

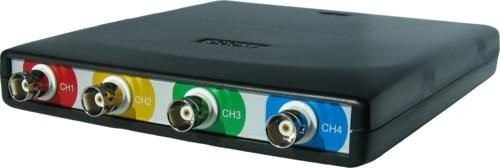

Automotive scope ATS5004D The ATS5004D is a four channel automotive oscilloscope with differential inputs. Besides the normal features of a professional USB oscilloscope, the ATS5004D has some specific features like SureConnect connection test and resistance measurement that make it an ideal instrument for the automotive technician. Safe measuring using differential inputs The ATS5004D is a four channel automotive oscilloscope with differential inputs. With the differential inputs it is possible to measure four totally unrelated signals simultaneously. It is no longer possible to create a short circuit through the oscilloscope or through a second device connected to your computer and to the car, like e.g. a fault code scanner. So no risk of damaging the car, the oscilloscope or the computer. SureConnect on each channel The SureConnect connection test feature of the ATS5004D tells you immediately whether your test probe or clip actually makes electrical contact or not. No more doubt whether your probe doesn't make contact or there really is no signal. This is useful when surfaces are oxidized and your probe cannot get a good electrical contact. Simply activate the SureConnect and you know whether there is contact or not. Also when back probing connectors in confined places, SureConnect immediately shows whether the probes make contact or not. Resistance measurement on each channel Many automotive sensors are based on variable resistors. Use your ATS5004D in the resistance setting to test them, no more need to take a separate ohm meter. Resistance values can be displayed as a number, but it is also possible to display the resistance variation in time, in a graph.
