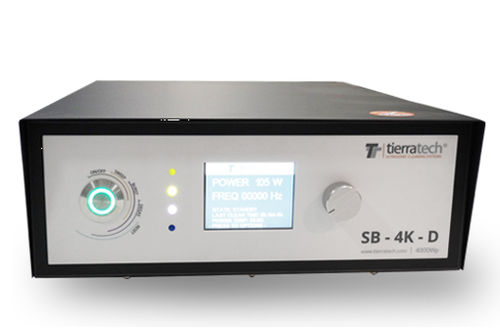

Ultrasonic cleaning generator SB-4K-D

burst

AVAILABLE POWERS: From 2000Wp to 4000Wp, with automatic power tracking, and optimum working point tracking, with three tracking modes, anti-stationary wave and anti-wave system in the tank. POWER INPUT VOLTAGE: 230V/50Hz. AC POWER CONSUMPTION: Up to 2000Wrms. PEAK POWER CONSUMPTION: Up to 4000Wp. AVAILABLE FRECUENCES: 28KHz / 40KHz / 40-90KHz (With sweep system up to +/-1.5KHz). AUTOMATIC FREQUENCY FOLLOWING: With 3 selectable modes. FREQUENCY FIXING WITH WIDTH CONFIGURATION: With 10 adjustable ranges, up to 3KHz with 300Hz steps. FREQUENCY SWEEP WITH SPEED CONFIGURATION: With 10 selectable sweep speeds, from 1Hz to 18Hz. BURST SYSTEM WITH INTENSITY C ONFIGURATION: With c onfigurable overshoot from 0% to 100%. BURST SYSTEM WITH SPEED C ONFIGURATION: With 6 c onfigurable modes fr om 10ms to 60ms. DEGAS SYSTEM: Degassing system with 3 configurable modes (short, medium and long time). ANTI TRAVELING WAVE SYSTEM: Minimizes traveling waves in the vat. STATIONARY WAVE SYSTEM: Minimizes the formation of standing waves in the tank. OVER TEMPERATURE PROTECTION: The system controls the power temperature and gives an alarm if it is exceeded. OVER CURRENT PROTECTION: The System monitors the current input and output and alarms if overcurrent occurs. OVERVOLTAGE AND UNDERVOLTAGE PROTECTION: The system checks all system voltages and alarms if any of them fail. EXTERNAL CONTROL WITH PLC: (Start/Stop, Sweep and Burst) with potential free contacts on the rear connector. EXTERNAL CONTROL AND INTERNAL CONFIGURATION WITH PLC: Intuitive communication protocol over RS- 485, no special software required, or also with modbus protocol over RS-485.
