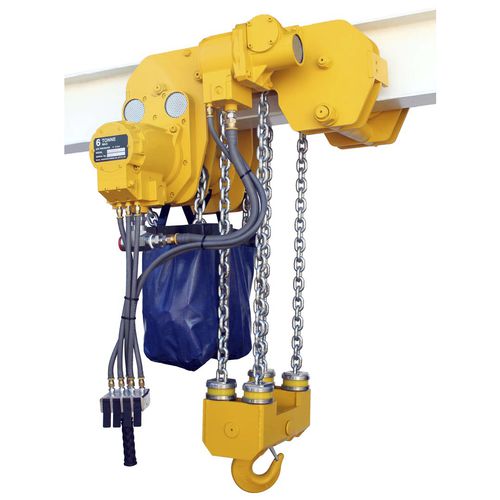

Pneumatic chain hoist ULT series

compactlow headroommotorized

ULT series hoists are designed specifically for mining, industrial and general engineering applications where headroom is extremely limited such as locomotive battery bays, pump chambers and underground workshops. They are available in geared and motorized traverse versions. The hoists operate at air pressures of between 4 and 6 bar and have a factor of safety in excess of 5 at the rated load. They comply with the requirements of SANS 1638, ASME B30.16 and EN14492-2. The manufacturing facility producing the hoists is ISO9001, ISO14001 & OHSAS18001 certified. Main features • - Range – 2, 3, 4 & 6 tonne • - Ultra-low headroom, compact and versatile • - Available in geared and motorized versions • - Greater than 5:1 factor of safety • - Integrated load limiter Details Load Limiter Integral differential pressure load limiting valve automatically prevents the operator lifting a load of more than 125% of the working load limit. Load limiter is 100% repeatable at all working pressures and does not wear or generate damaging heat. Emergency Stop All hoists can be supplied with an emergency stop device as an option. This shuts off the main air supply to the hoist when activated. Resetting the device will not automatically restart the hoisting operation. Precise Control Accurate and precise positioning of loads is standard for both toggle and pendant control models. Fail Safe Disc Brake Non-asbestos self-adjusting disc brake is applied automatically when the air supply to the hoist is shut off. The brake is self-adjusting for the life of the brake and can hold more than 125% of the working load limit.
