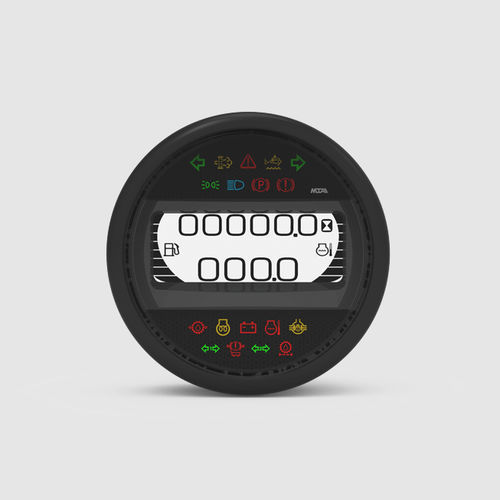

LCD display SPOT

colorfor vehiclesCANbus

Customizable dial plate, front bezel and internal mask Dimensions: Ø 100 mm, external frame Ø 107 mm Power supply: 12 Vdc CAN bus interface RTC (optional), buzzer Connector: Tyco Superseal 26 pins MICROCONTROLLER 32 bit microcontroller .... SPC 560B54 ST Frequency ......................... 48 MHz Flash .................................. 768 KB RAM ................................... 64 KB EEPROM ............................ 256 Kbit INPUTS 16 digital inputs, 3 of these with wake-up circuit: 5 with pull-down 5 with pull-up 6 with software configurable pull-up/pull-down 2 Analog inputs 1 Frequency input 1 D+ Alternator Signal OUTPUTS 1 500 mA LS (optional) COM 1 CAN high speed with wake up TELLTALES 18 Led telltales
