Temperature calibrator 5011resistancefor temperature sensorsprecision
Add to favorites
Compare this product
Characteristics
- Measured physical value
- temperature, resistance
- Applications
- for temperature sensors
- Options
- precision, programmable
- Temperature
Max.: 850 °C
(1,562 °F)Min.: -180 °C
(-292 °F)
Description

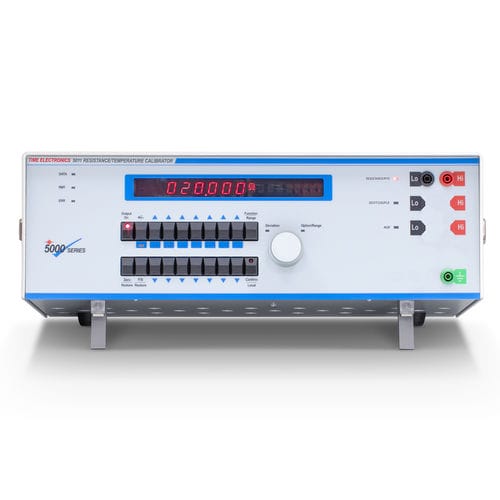

The 5011 is a versatile, high accuracy calibrator that can be used in a wide range of applications across various industries. Primarily used as a programmable resistance / RTD source, the 5011 provides precision resistance with a best accuracy of 0.01 % and 1 mΩ resolution (50 Ω to 1 kΩ).
Internal options for increased capabilities can be fitted as per customer requirement. These include DC voltage and thermocouple simulation, DC current, and frequency.
The 5011 can be used as a laboratory grade resistance and temperature calibrator, or incorporated into an automated test system for dedicated signal injections. A rack mount kit option is also available.
Features
• 1 Ω to 120 MΩ
• RTD and thermocouple simulation
• DCV and DCI options
• 10 MHz frequency option
• RS-232 / GPIB / USB interfaces
• Front panel operation
• EasyCal Software compatible
