Pressure test stand 8100

temperaturemanualcompact

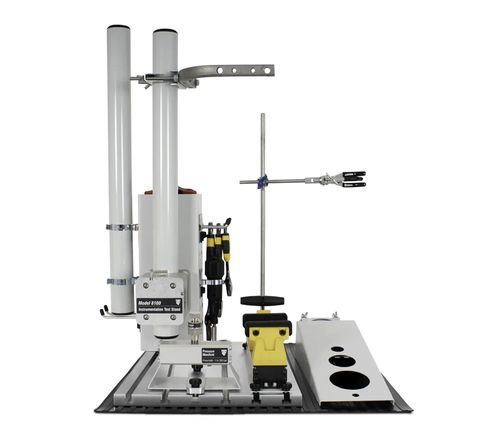

The 8100 is a multi-purpose test stand, primarily for use with process instrumentation in the workshop or lab. It is a compact workstation that provides users with quick and customiseable setups for common testing applications and service work. These include practical mounting of various pressure transmitters and gauges, temperature transmitters, RTDs and thermocouples. A solid aluminium track plate situates on a non-slip rubber mat, providing a sturdy base for working with heavy transmitters and other devices. The base allows the fixtures and tools to be easily connected, with knurled knob thumb screws and clamps to secure them in place. The fixtures can slide back and forth along the tracks for an optimal working position. They can also be removed and repositioned as per user preference. The 8100 is supplied as a comprehensive kit with tools and fixtures for a variety of tasks. Tools include 3 adjustable spanners, electric screwdriver, bit set, folding triangle hex key set, and cable tie set. Additional fixtures are provided to connect to the base plate and the upright clamp sections. Features • Multi-purpose test stand • For process & pressure instrumentation • Configurable solution for workshop use • 2 transmitter poles for U-bolt connections • Pressure manifold with quick connect port • Quick-vice with sliding jaw • Retort rod for RTDs and thermocouples • Supplied as kit with tools
