Cylindrical roller bearing ADAPT™
spherical rollersphericalhigh-precision

cylindrical roller bearing
cylindrical roller bearing
cylindrical roller bearing
cylindrical roller bearing
cylindrical roller bearing
cylindrical roller bearing
cylindrical roller bearing
cylindrical roller bearing
cylindrical roller bearing
Add to favorites
Compare this product


Characteristics

Rolling element
cylindrical roller, spherical roller
Configuration
spherical
Other characteristics
high-precision, high-performance
Applications
for rolls, for continuous casting
Outside diameter

Min.: 100 mm (3.94 in)

Max.: 170 mm (6.69 in)

Description

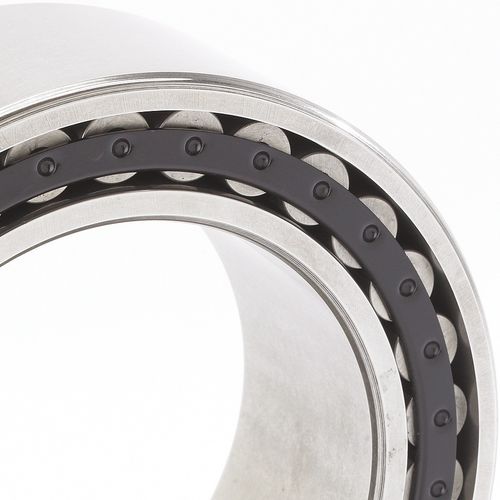

The Timken® ADAPT™ bearing combines the traditional cylindrical roller bearing and spherical roller bearing configurations. Its proprietary outer race and roller profiles plus a cylindrical inner ring combine the key attributes of both bearing types. This unique three-point contact design geometry provides simultaneous misalignment and axial displacement performance, optimizes contact stress distribution, and helps promote roller stability. The result is a more dynamic, more reliable bearing. Key Benefits Proven Performance Timken conducted extensive in-house testing against equivalent-size toroidal bearings from leading brands. Results confirm ADAPT bearings offer Including 21 heat generation and bearing life tests conducted on 170 ADAPT and 50 competitor bearings; over 70,000 testing hours and over 8 years; bearings manufactured to ISO 2212 boundary dimensions (60 & 110 x 28 mm); speeds ranging from 1200 to 4800 RPM; loads between 10 and 50 percent of ISO calculated C1 rating. Easier Installation The ADAPT bearing consists of an inner ring, outer ring, and roller/retainer assembly. The separable components simplify installation, removal, and inspection. The retainer holds the rollers in position, creating a single assembly that prevents the rollers from being damaged during mounting and dismounting. The inner ring and outer ring can be installed in either direction, helping to avoid common mounting errors. No special tooling is required.
