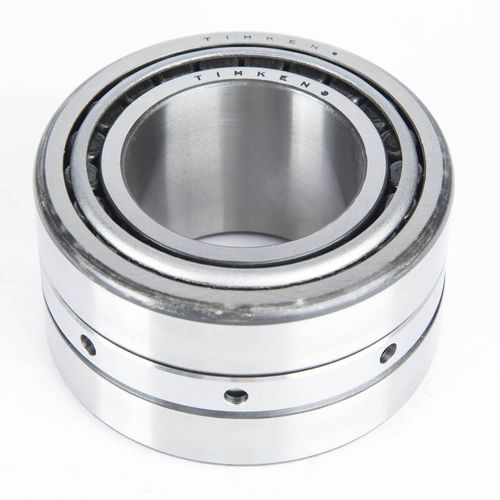

Tapered roller bearing TDI
double-rowsteelfor industry

tapered roller bearing
tapered roller bearing
Add to favorites
Compare this product


Characteristics

Rolling element
tapered roller
Configuration
double-row
Material
steel
Applications
for industry, for rolls, for gear reducers
Inside diameter

Min.: 25.4 mm (1 in)

Max.: 1,200.15 mm (47.25 in)

Description

TDI bearings have a one-piece double inner race and two single outer races and are typically supplied complete with an outer race spacer as a pre-set assembly. The bearing can be used at fixed positions on rotation shaft applications. For rotating housing application it can be used to float on the stationary shaft. TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal. Design Attributes: Double cone and two single cups, with or without a cup spacer. Furnished as a matched assembly. Cups ground to fit. Applications: Gear reduction units Cranes Calendar rolls Industrial machinery
