Cylindrical roller bearing N series
sphericalsingle-rowradial

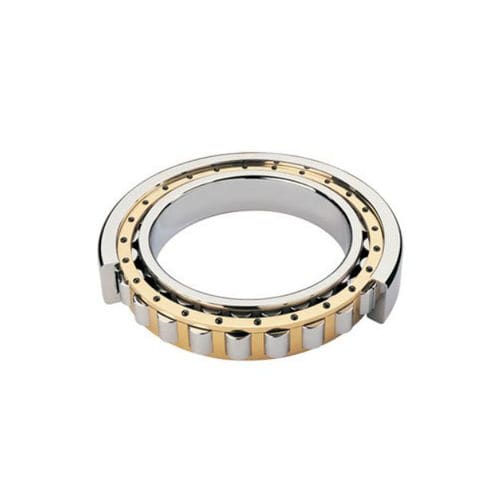

Cylindrical roller bearing - N series - TIMKEN - spherical / single-row / radial
Cylindrical roller bearing - N series - TIMKEN - spherical / single-row / radial
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Rolling element
cylindrical roller
Configuration
radial, axial, spherical, single-row
Material
steel
Applications
for pump, for rolling mills, for conveyor, for gearboxes, for vertical mills
Other characteristics
with brass cage, for heavy loads
Inside diameter

Max.: 220 mm
(8.66 in)

Min.: 80 mm
(3.15 in)

Outside diameter

Max.: 420 mm
(16.54 in)

Min.: 65 mm
(2.56 in)

Width

Max.: 138 mm
(5.433 in)

Min.: 26 mm
(1.024 in)

Description

These bearings carry radial load only and can accommodate both expansion and contraction. The relative axial displacement of one ring to the other occurs with minimum friction while the bearing is rotating. Type N bearings may be used in one or two positions for shaft support if other means of axial location are provided. The outer ring has a cylindrical bore without ribs and the inner ring incorporates two ribs. Design Attributes Design has a cylindrical outer ring and two ribs on the inner ring, making type N bearings well suited for use as floating bearings. Separable components simplify mounting and removal. Accommodates axial expansion and contraction. Provides axial displacement between rings with minimum friction while rotating. Supports heavy radial loads. Not suitable for applications with thrust loads. Applications Oilfield equipment such as mud pumps, drawworks, swivels, block hooks, crown blocks, traveling blocks and top drives
