Cold water high-pressure cleaner HW132E
three-phasediesel enginemobile

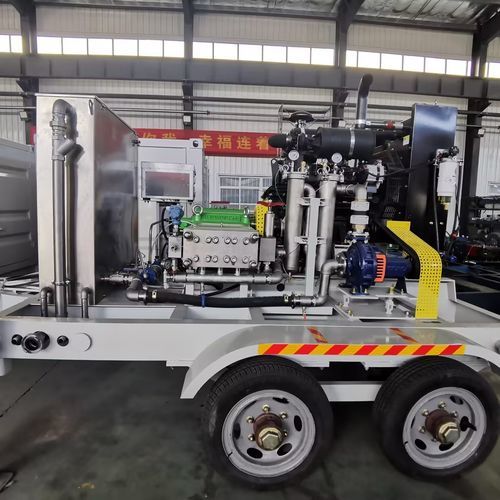

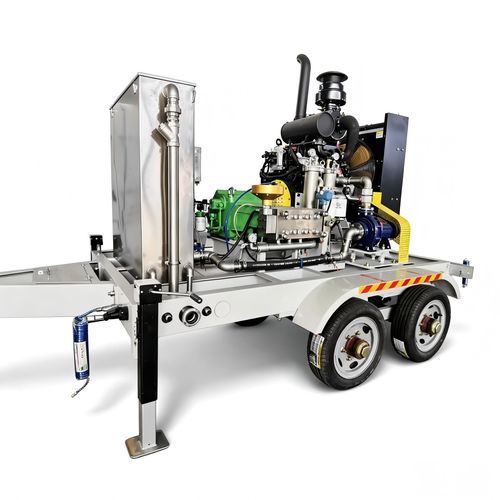

Cold water high-pressure cleaner - HW132E  - Tinajin Harvest - three-phase / diesel engine / mobile
Cold water high-pressure cleaner - HW132E  - Tinajin Harvest - three-phase / diesel engine / mobile
Cold water high-pressure cleaner - HW132E  - Tinajin Harvest - three-phase / diesel engine / mobile - image - 2
Cold water high-pressure cleaner - HW132E  - Tinajin Harvest - three-phase / diesel engine / mobile - image - 3
Cold water high-pressure cleaner - HW132E  - Tinajin Harvest - three-phase / diesel engine / mobile - image - 4
Cold water high-pressure cleaner - HW132E  - Tinajin Harvest - three-phase / diesel engine / mobile - image - 5
Cold water high-pressure cleaner - HW132E  - Tinajin Harvest - three-phase / diesel engine / mobile - image - 6
Add to favorites
Compare this product

Characteristics

Type
cold water
Power source
three-phase, diesel engine
Configuration
mobile, trailer-mount, truck-mounted
Pump material
steel
Other characteristics
stainless steel, outdoor, for heavy-duty applications, for paint removal, long-life, for marking removal, descaling, for the metallurgical industry, high pressure, industrial
Pressure

Min.: 400 bar
(5,801.51 psi)

Max.: 1,800 bar
(26,106.79 psi)

Water output

Min.: 2 m³/h
(70.63 ft³/h)

Max.: 4 m³/h
(141.26 ft³/h)

Pipe length

Min.: 1 m
(3'03" )

Max.: 10 m
(32'09" )

Sound level

Min.: 50 dB

Max.: 80 dB

Lengh

Min.: 70 cm
(28 in)

Max.: 180 cm
(71 in)

Width

Min.: 120 cm
(47.24 in)

Max.: 150 cm
(59.06 in)

Height

Min.: 50 cm
(20 in)

Max.: 100 cm
(39 in)

Weight

Min.: 600 kg
(1,322.77 lb)

Max.: 2,000 kg
(4,409.25 lb)

Description

high pressure plunger pump is a new product which is independently developed by our r&d staff and has completely independent intellectual property rights. The power end matches three speed ratios suitable for different working conditions, and the new forced lubrication structure guarantees the reliability of contact operation. The hydraulic end adopts the modular design concept, convenient to use and maintain. Wear parts life not less than 700 hours. The pump type is especially suitable for road line marking and line dividing, power plant heat exchanger, condenser and other fields of high pressure water jet cleaning requirements.
