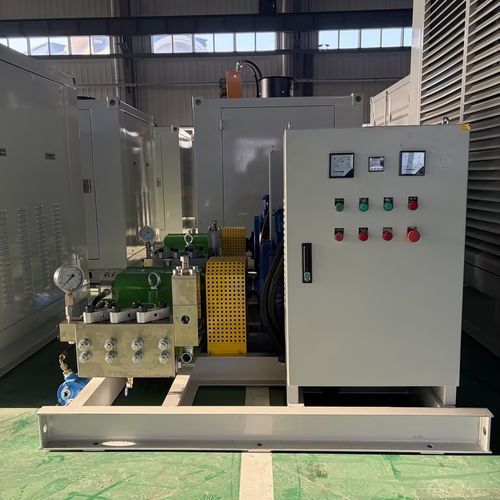

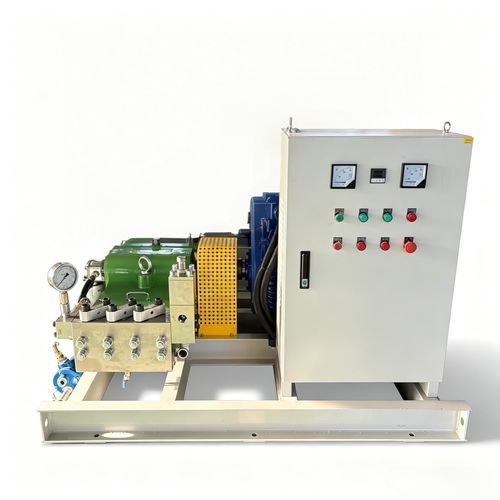

Plunger pumping unit 3D2-SZwaterfor chemicalselectric
Add to favorites
Compare this product
Characteristics
- Technology
- plunger
- Fluid
- water, for chemicals
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial, for marine applications
- Applications
- high-pressure, transfer, for industrial applications, cleaning, lubrication, ultra high-pressure, cooling, descaling
- Material
- stainless steel, cast aluminum, metal
- Fluid specification
- for low-viscosity fluids
- Voltage
- 380 V, 400 V
- Protection level
- standard
- Other characteristics
- compact, low-noise, OEM, high-efficiency, small, modular
- Flow
Min.: 1.62 m³/h
(57.20976 ft³/h)Max.: 12.6 m³/h
(444.9648 ft³/h)- Pressure
Min.: 7 MPa
Max.: 50 MPa
- Power
Min.: 30 kW
(40.79 hp)Max.: 90 kW
(122.37 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)- Length
Min.: 500 mm
(20 in)Max.: 1,000 mm
(39 in)1,097 mm
(43 in)- Width
Min.: 500 mm
(19.69 in)Max.: 1,000 mm
(39.37 in)599 mm
(23.58 in)- Height
Min.: 500 mm
(19.69 in)Max.: 1,000 mm
(39.37 in)590 mm
(23.23 in)- Weight
Min.: 300 kg
(661.39 lb)Max.: 1,000 kg
(2,204.62 lb)342 kg
(753.98 lb)
Description
high pressure piston pump, the pump type is small and compact; The power end adopts splash lubrication or forced lubrication, which is stable and reliable in transmission, reduces the friction coefficient and improves lubricity; The temperature rise of the power section is low, which is suitable for long-term continuous operation; It can pump clean water, emulsion, and other liquids with chemical properties similar to clean water, high-pressure water jet cleaning, metallurgical descaling, powder metallurgy, ship cleaning and rust removal, basic engineering, liquid transportation, engineering excavation and pressure test pumps for various hoses, metal pipes, and oilfield drilling wellhead equipment.
