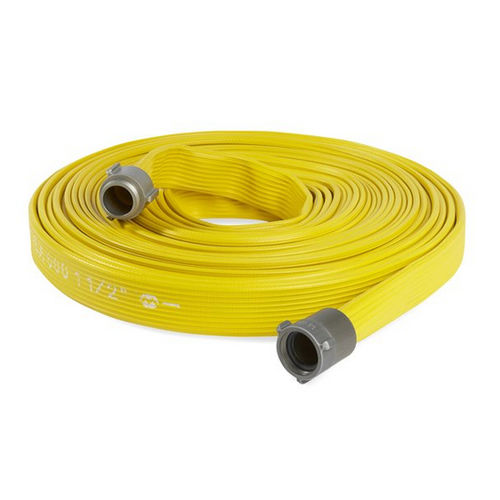

Water hose ARMTEX JAFRIB
nitrile rubbersynthetic yarnPVC

water hose
water hose
water hose
water hose
water hose
Add to favorites
Compare this product


Characteristics

Use
for water
Material
nitrile rubber, synthetic yarn, PVC, thermoplastic
Applications
for petrochemical applications, fire, for nuclear plants
Other characteristics
abrasion-resistant, chemical-resistant, standard, rugged, extruded, reinforced, vulcanized, flat
Inner diameter

Max.: 152 mm
(5.984 in)

Min.: 38 mm
(1.496 in)

Outer diameter

Max.: 160 mm
(6.299 in)

Min.: 43 mm
(1.693 in)

Pressure

14 bar, 15 bar, 17 bar, 21 bar
(203.053 psi, 217.557 psi, 246.564 psi, 304.579 psi)

Temperature

Max.: 80 °C
(176 °F)

Min.: -30 °C
(-22 °F)

Delivered length

15 m, 30 m
(49'02" , 98'05" )

Description

Brick Red and Yellow are the standard colors. Other colors are available upon request. Aplications: Specially designed for municipal fire departments, navies, pethrochemical, nuclear plants and other industrial services. Resistant to petroleum, chemicals, and abrasion. Construction: Made from circularly woven 100% high tenacity synthetic yarn, completely protected and locked-in by a tough, highly resistant synthetic nitrile rubber & PVC blend, extruded through the weave and forming a single homogenous construction without the use of glues or adhesives. Lining Properties: The tensile strength of the lining and cover shall not be less than 1750 p.s.i. (12,000 kpa ), with an ultimate elongation of liner and cover not less than 450%. Accelerated Aging: Lining specimens subjected to an exposure of 158ºF ± 3.6ºF, for a duration of 96 hours shall be conditioned as per ASTM D 573, Standard Test Method for Rubber – Deterioration in an Air Oven. Then, the specimens shall be tested to ASTM D4112, Standard Test Methods for Vulcanized Rubber and Thermoplastic Elastomers- Tension, Method A. Upon evaluation, the tensile and elongation properties of the liner shall not be less than 75% of their initial values. Abrasion Resistance: IAs stated in NFPA 1961 (UL 19 & FM 2111), hose shall withstand 1-1/2 times the service test pressure without rupturing or breaking any thread in the jacket or reinforcement, after 300 cycles of abrasion for a single jacketed hose. Hose assembly shall also not leak or burst after 3000 cycles by an abrasion wheel.
