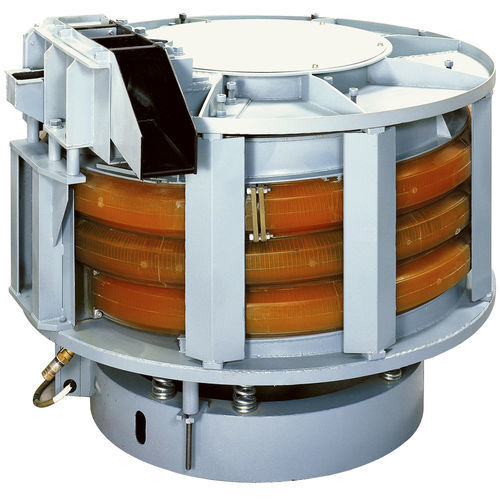

Grinding vibratory finishing machine Revolver CWS series
polishingdeburringedge rounding

grinding vibratory finishing machine
grinding vibratory finishing machine
Add to favorites
Compare this product


Characteristics

Associated function
grinding, polishing, deburring, edge rounding, polishing, finishing
Type
linear, stream finishing
Applications
industrial, for tools, for bars, for micro-finishing applications, for tubes
Treated material
metal, for composites, steel, for stainless steel
Other characteristics
continuous-flow, semi-automatic, with sieving systems, continuous, for high-volume production
Power

Min.: 5.5 kW (7.48 hp)

Max.: 11 kW (14.96 hp)

Description

Continuous vibratory finishing available. (Easy to be integrated into production line) This machine has two size as 170L and 450L. *BENEFIT Segmentalized urethane hoses are wound around the vibrating motor and assembled spirally as one hose. Abrasive media should be loaded into the urethane hoses and vibration is given. If workpieces are continuously loaded into urethane hoses from loading port, strong compression force is generated to mass. Mass flow in the urethane hoses finish workpieces within one cycle. Workpieces and abrasive media are separated on the separation screen. Workpieces are unloaded through unloading port while abrasive media return to the hose through separation screen. *APPLICATION Applicable to all Metals, Plastic, Ceramic, Glass and so on for the purpose of Deburring, Descaling, Rough Finishing, Precise Finishing and Luster Finishing.
