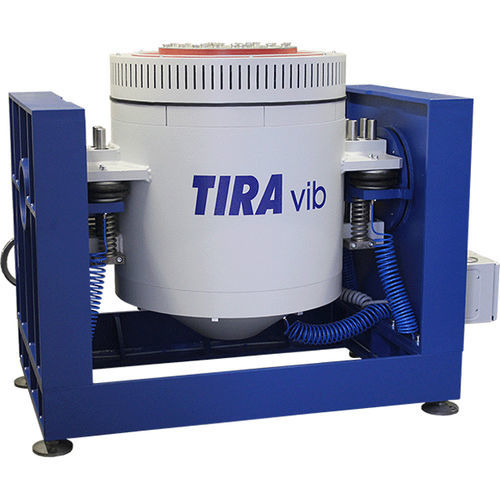

Electrodynamic shaker TV 59322/*-340

• Electrodynamic shaker with trunnion • Power save function (field power reduction) • Optional Dual Bearing-System for enhancement of cross axial stiffness and reduction of wear (larger or equal to 27 kN) • Air glide option (shaker is displaceable on air cushions) • Multiple safety devices • Clamping table (Armature) ø340 mm, ø440 mm or ø640 mm • Designed for Long-time operation • Minimum maintenance effort • High cross-axial stiffness • Mounted pivotable in a rugged trunnion with combined rubber/air isolators • up to 76.2 mm (3“) displacement • Automatic centering of the AIT-system and the armature • AIT-system fixable to use the full displacement also at low frequencies and heavy loads • Fully automatic pneumatic load compensation for heavy test loads • Air-cooling blower with optional fan speed control • Available as RIT, AIT or LB trunnion system* (smaller or equal to 35 kN) • Degauss kit to reduce stray magnetic field (optional low degaussing for further reduction)
