Wave blade drift eliminator LTN-8607

cooling tower

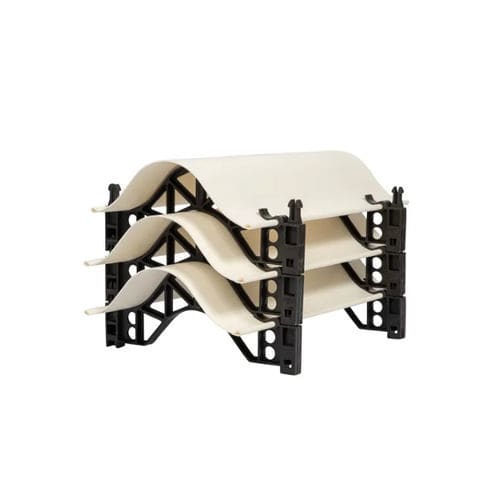

Cooling Tower Mist Eliminator This drift eliminator were installed by the sinusoidal wave blade、wave spacer and PP spacer. This drift eliminator were widely used in the top of the counterflow and crossflow cooling tower, and its function is to separate the droplets in the airflow. This drift eliminator could provides extra stiffness for long spans with minimum deflection. The wave spacer could secure wave sections uniformly at a finxed interval to improve stability and blocks that holds the assembled block grid securely. It could been installed fastly and efficiently. Block can be easily cleaned when necessary. PP Cooling Tower Mist Eliminator Drift eliminators are designed to capture large water droplets caught in the cooling tower air stream. The eliminators prevent the water droplets and mist from escaping the cooling tower. Eliminators do this by causing the droplets to change direction and lose velocity at impact on the blade walls and fall back into the tower. Efficient drift eliminators will keep drift losses to less than .001% of the re-circulating water flow rate. Drift eliminators are used to control water loss from a cooling tower by limiting the amount of circulating water droplets that are emitted with the exhaust air of the tower. Since drift droplets contain the same chemical and particulate matter of the circulating water from which they originate, they can cause numerous detrimental effects on surrounding equipment and the environment. The cooling tower industry uses drift rate to compare drift eliminator performance, a relationship that correlates droplet capture efficiency to the water circulation rate in a tower.
