SCARA robot THP700

4-axishandlingpackaging

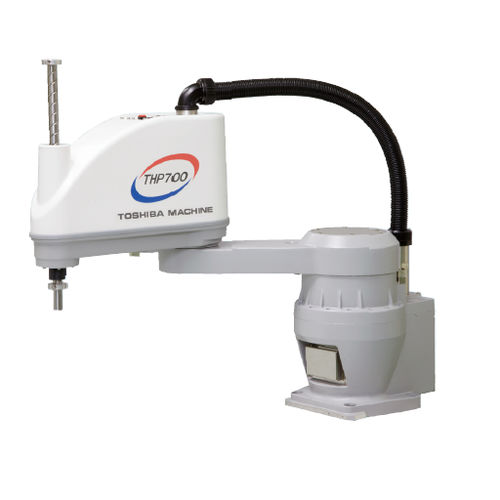

Shibaura Machine has developed the high-speed SCARA robot, the THP700, which has been designed specially for high-speed handling applications in the food processing and pharmaceutical packaging fields. The THP700 has an arm length of 700mm and a maximum payload of 10kg. The main features include a lighter body weight and low inertia of the second arm. The first arm is made from solid aluminium for higher rigidity, but the robot achieves extremely fast cycle times of 0.345 per seconds (2kg). The durability of the body structure has remarkable resistance under frequent acceleration and deceleration. The THP700 is equipped with a controller, the TS3000E, which has built-in ethernet/USB ports as standard. This controller has the capability to share a vision system on multiple robots, so it makes conveyor and vision synchronization effortless and affordable. It also provides easy maintenance for programming data input/output. Additionally, the built-in PLC function allows easy connection with HMI, touch screens and control of I/O equipment, regardless of the robot operation and program. Options such as IP65 and cleanroom specifications are available for this model. *1: Horizontal 300 mm, vertical 25mm, round-trip. Continuous operation is not possible beyond the effective load ratio. *2: Acceleration/deceleration rates may be limited according to the motion pattern, load mass and amount of offset. *3: The table shows unidirectional positioning repeatability at constant ambient temperature, but NOT absolute positioning accuracy.
