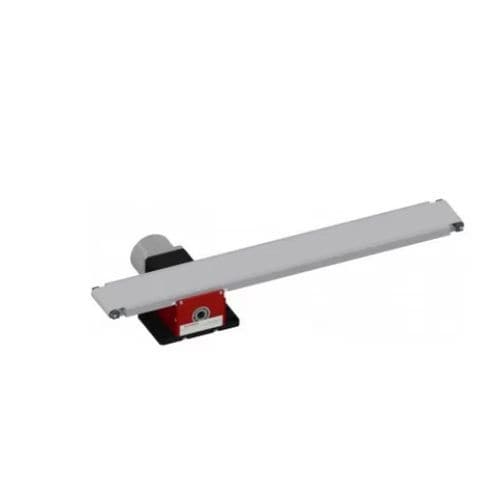

Belt conveyor FB
rollerhorizontalbelt-driven

Belt conveyor - FB - TM Robotics - roller / horizontal / belt-driven
Belt conveyor - FB - TM Robotics - roller / horizontal / belt-driven
Add to favorites
Compare this product

fo_shop_gate_exact_title

Go to the TM Robotics website for more information

Characteristics

Technology
belt, roller
Form
horizontal
Drive mechanism
belt-driven
Transported product
food
Other characteristics
plate
Effective width

67 mm
(3 in)

Length

Max.: 2,000 mm
(78.74 in)

Min.: 150 mm
(5.91 in)

Description

Diameter of the guide roller: 15 mm Drive unit position may be chosen upon placing the order Temperature resistance of the belt: -30°C up to 100°C Drive unit may be shifted freely to either side of the belt plate Transportation belt for the food & drug industry (FDA) Transportation belt rests upon the belt plate Belt plate made of solid anodized aluminum Solid structure
