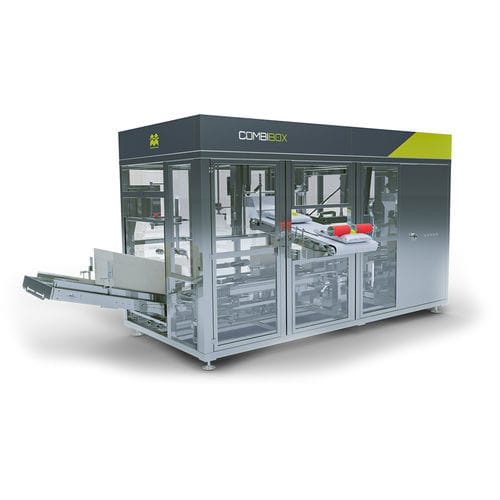

Combibox is a monoblock suitable to satisfy the bag-in-box manufacturers with limited working areas, hygiene problems, no specialized technicians presence, volume flexibility requirements and quick time needs for the format change.
Combibox is a compact and solid equipment which includes, in a very limited space, three machines: carton former, bag cartoning and carton sealing.
For food use
The machine may be completely manufactured with stainless steel in order to be also placed in food manufacturing environments, for an easier cleaning and hygiene maintenance thanks to its several access with comforming safety doors protection.
For American cartons
It works with American carton type, following different phase of a step by step working system.
Hot melt or adhesive tape closure
It is possible to supply the machine complete with upper and lower sealing of the carton, with a hot melt unit of first quality or two taping units of 50 mm.
The integrated management makes easier both the machine operation and maintenance. The control panel and the installed software have been planned in order to synchronize the working phases with the aseptic or not aseptic fillers.
The bag cartoning is made by a food rubber food belt and a funnel centring device adjustable according to the format, installed on pneumatic cylinders which guide the bags fall into the carton, moving the flaps sideways.
General technical characteristics
Mechanics speed: cycles/hour up to 550
Air consumption 6/7 bar: NL/min. about 400
Max. installed power: kW 2 (+6 hot-melt)
Carton size: min. 90x180x230 mm
max. 250x350x400 mm
Format change time: min. ~ 15
