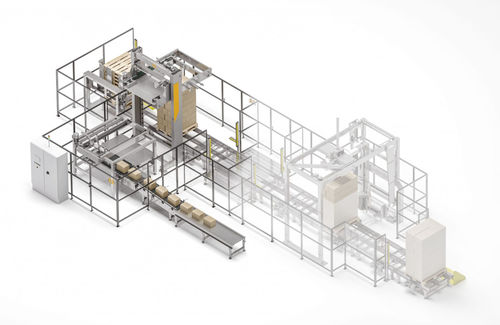

Low-level automatic or semiautomatic palletiser with the pallet in a stationery position for low production needs. Ideal for cartons, crates, jerry cans and shrink-packed products. The products on infeed are distanced one from the other, orientated, grouped into layers and placed on the pallet in a pre-determined programme.
Sweep palletisers with minimal footprint, which can be supplied with high or low level infeed and can be adapted for a wide range of products.
Quick investment return
Due to the rationalisation of the design in both size and operation, the machines have an excellent qualityprice balance allowing a quick payback on the initial investment.
In alternative to palletising with the pallet on the ground or directly on the pallet outfeed conveyor, the palletiser can be fitted with a shuttle car system in the layer unloading area with two or more stations to allow different products to be palletised simultaneously on separate pallets.
- High-level infeed
- Multi-pallet stations to palletise different products on different pallets
- Pallet conveyors
- Empty pallet magazine
- Layercard placement device
- Shuttle car system for transport of completed pallets
- Supervision and teleassistance via modem
General technical characteristics
Mechanics speed: up to 3 cycles/min.
Air consumption 6/7 bar: about 200 Nl/min.
Max. installed power: 6/8 kW
