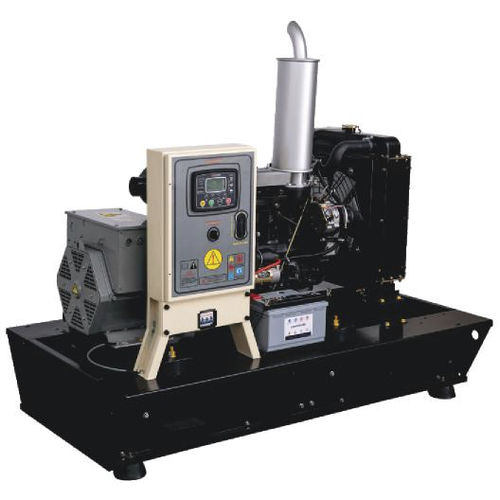

Diesel generator set TMGYD-45three-phasestationary50 Hz
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase
- Portability
- stationary
- Frequency
- 50 Hz
- Fuel System
- direct fuel injection
- Cooling system
- liquid-cooled
- Options and accessories
- soundproofed, open type
- Power in kVA
Min.: 40.9 kVA
(55.61 hp)Max.: 45 kVA
(61.18 hp)- Rated capacity
Min.: 32.7 kW
(44.5 hp)Max.: 36 kW
(48.9 hp)- Voltage
230 V, 400 V
- Rotational speed
1,500 rpm
(9,425 rad.min-1)- Length
2,000 mm, 2,300 mm
(79 in, 91 in)- Width
950 mm
(37 in)- Height
1,310 mm, 1,560 mm
(52 in, 61 in)
Description
Continuous Power
The maximum power which a generating set is capable of delivering continuouslywhilst supplying a constant electrical load.Average load can be 100%. The generator must not be overloaded.
Standby Power
The maxpower available during a variable electrical power sequence, under the stated operating conditions, for which a generatingset is capable of delivering in the event of a utilitypower outage or under test conditions for up to 200 hrs of operation per year under average of 70%load.Overloading isn’t permissible.
Prime Power
The maximum power which a generating set is capable of delivering continuouslywhilst supplying a variable electrical load.Average load should be 70%. The generator can be overloaded 10% for 1 hour per 12 hrs.
