layer palletizer / high level infeed / bag / for the chemical industry



  • Type:

    layer, high level infeed

  • Product applications:


  • Other characteristics:

    for the chemical industry, automatic

  • Throughput:

    2,000 p/h

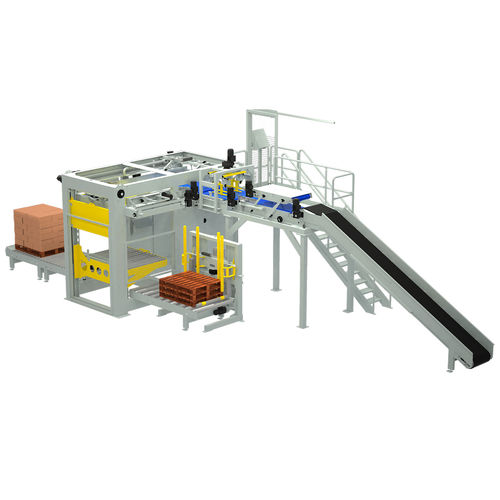

High level bags palletizer, lateral bag pushing, layer compacting and mobile platform

Perfect shape of the end pallet
Between 1 and 15 kW of energy saving in the elevation platform, 20 % to 25% consumption reduction on the gearboxes and longer lasting of the mechanical elements due to the use of low friction surfaces.
Flexibility and quickness on format changes
Smooth, accurate and quiet operation
Simple and user friendly operation
Rigid and accurate machine
Quick and easy change of belt conveyors

Outputs up to 2.000 bags/hour depending on palletizing formats and number of layers
Bags conditioning system and turning device according to the product, type of bag and required output.
Counterweighed elevation platform, driven by motor-gear with frequency inverter
Layer forming zone equipped of a double slide-gate with a low friction coating made of polyethylene (PE-1000)
Side and frontal forming dams, motorized and driven by double rack
Top flattening of each new layer against the sliding gates
Pallets centering device at the elevation platform
Automatic pallet dispenser, entrance and exit roller conveyors

Agro-feed: Seeds, cereals, cattle feed, pet-foods, premixes
Foodstuff: Flours, semolina, ingredients, milk powder, cocoa powder, sugar
Chemical & Petrochemical: Fertilizers, PVC, plastic granules
Building & mining: Mortars, sepiolite, perlite, salt, glass, frit
Recycling: Biomass pellets, Shredded tyres
