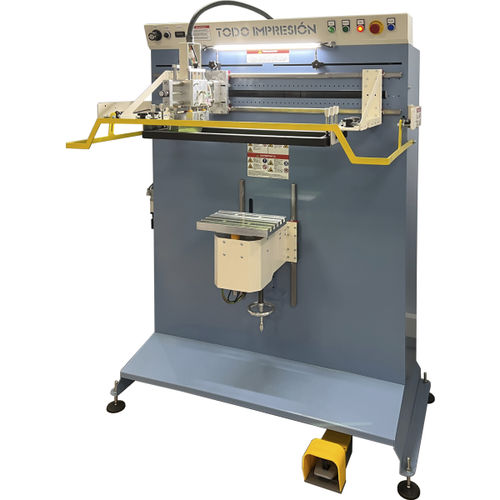

Semi-automatic screen printer VERSA

colorfor the glass industryfor the plastics industry

1 Colour | Flat, Cylindrical and Oval The perfect Semi-Automatic Multiform Screen Printing Machine to start or complement a process. Simple, intuitive and economical. A must for any workshop ! Features Multiform: Flat, Cylindrical and Oval (Optional). Multicolour with Mechanical Register (Optional) Workpiece Clamping and Pressurisation System (Optional) Very robust and stable worktable Pressure Control of the strip and the container Speed Control of all Axes PLC Control Remote Connectivity Module (Optional) Technical Data Cycle: Single and continuous Part counter: Yes, sequential Speed adjustment: Yes Speed: Up to 1500 p/h (depending on configuration) Variable carriage travel: 30 to 400 mm (Optional 650 mm and 1000 mm) Maximum Screen Size: 400x600 mm Maximum Print Development: 250x400 mm Maximum Flat Product: L800xH400xH400 mm Maximum Cylindrical Product: Ø120xH300mm (Optional Ø200, 300, etc...). Maximum Taper 5º. Oval Product Maximum: R100xH250 mm Drive: Motor and Electropneumatic Power supply: 230V / 1 Phase / N / Earth - 50/60 Hz Electrical Consumption: 10A Compressed Air: Dry and Filtered 5-6 bar Air Consumption: 75 l/min Dimensions: L1500xW800xH - L1500xW800xH1800mm Weight: 300 kg Safety: Emergency stop Soft start valve Double pneumatic safety valve with limit switch sensor Safety Relay Perimeter safety bar Quality: Designed for industry according to European standards. Parts machined in our machining centres Laser-cut and CNC bent structure Original top brand pneumatics Non-contact actuator position sensors
