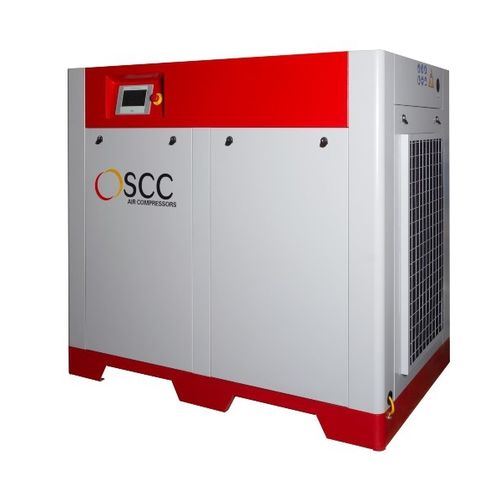

Screw compressor Focus
airelectrically-poweredstationary

screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-injected
Application domain
industrial
Other characteristics
vertical tank, direct-drive, energy-saving
Pressure

8 bar, 10 bar, 12 bar
(116.03 psi, 145.04 psi, 174.05 psi)

Flow

Max.: 49.36 m³/min
(1,743.13 ft³/min)

Min.: 2.7 m³/min
(95.35 ft³/min)

Power

Max.: 315 kW
(428.28 hp)

Min.: 22 kW
(29.91 hp)

Description

Our FOCUS series is fully designed for energy saving. This gives our customers a great cost-benefit effect and contributes to the careful use of our energy resources. Loss-free power transmission from motor to Compressor stage Energy efficient thus reducing electricity costs Small footprint Space-saving technology, which also allows installation in confined spaces. Good accessibility for all service and maintenance work. Reduced wear and tear No need to replace the drive belts and therefore lower maintenance costs. Longer service life of the compressor stage due to a significant reduction of the radial load on the bearings. - Fully on energy saving Our FOCUS series is fully designed for energy saving. This gives our customers a great cost-benefit effect and contributes to the careful use of our energy resources.
