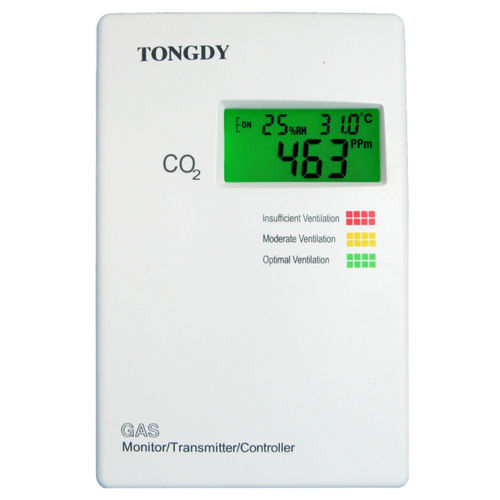

CO2 gas transmitter G01-CO2-B10C/30C

infraredmulti-useModbus

Specifications: 1. Gas detected: Carbon Dioxide (CO2) 2. Sensing element: Non-Dispersive Infrared Detector (NDIR) 3. Accuracy: ±40ppm + 3% of reading 4. Calibration interval: ABC Logic Self Calibration System 5. Response time: <2 minutes for 90% step change 6. Warm up time: 2 hours (first time), 2 minutes (operation) 7. CO2 measuring range: 02,000ppm / 05,000ppm selectable in orders 020,000ppm / 050,000ppm just for TSM-CO2-S series 8. Sensor life: Up to 15 years 9. Power supply: 24VAC/24VDC 10. Analog outputs 0~10V or 4~20mA selectable by jumpers 11. Relay output: 1X2A switch load. Four set points selectable by jumpers 12. LED indicators: 6 LEDs 13. Modbus interface: Modbus RS485 interface 14. Operation conditions: 0~50℃(32~122℉); 0~95%RH, non condensing 15. Storage conditions: 0~50℃(32~122℉) 16. Net weight: 180g 17. Dimensions: 100mm×80mm×28mm 18. Installation standard: 65mm×65mm or 2×4wire box 19. Approval: CE-Approval 20. IP class:
