Gearbox full / flushing station Speed 2000

carautomaticmobile

Overview

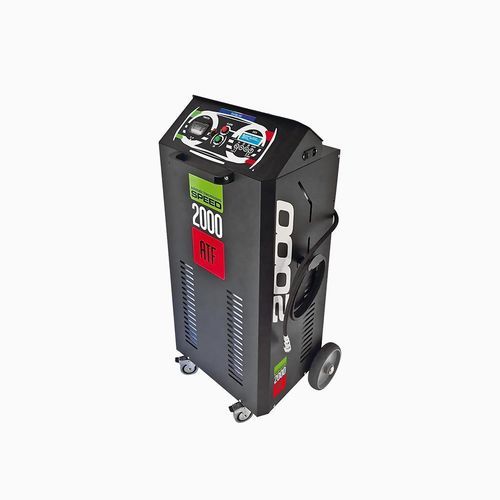

Automatic ATF machine for maintenance of automatic transmissions on vehicles of any brand. Fully automatic operation guides the operator step by step and displays estimated remaining time for each phase. Can be used as a diagnostic tester to identify gearbox malfunctions before flushing and oil change operations. Robust painted-steel construction with an alphanumeric display and keypad designed for intensive workshop use. Manufactured in Italy (TopAuto).

Key features

• Multi-brand fittings and adapters (approx. 110 metal connectors)
• Automatic flow recognition
• Automatic oil filling and draining
• Oil weighing and automatic management of volumes
• Automatic level management during replacement
• Automatic additive insertion for flushing
• Alphanumeric matrix display with step-by-step guidance
• Variable-speed / variable-flow pump to prevent overpressure
• Status light and audible anomaly alerts
• 10 µm filtration
• Integrated flowmeter

Software and operation
The Speed 2000 software automatically recognises oil flow, measures temperature and adjusts the correct level during exchange. It displays new and used oil weights and refill/drain quantities. The variable-flow pump adapts to each gearbox flow to avoid overpressure. The TopAuto online database (over 150,000 vehicle models) provides detailed connection data and procedural documentation accessible from the unit.

Connections and accessories
TopAuto supplies a comprehensive kit of metal connectors and adapters (approx. 110 items) to ensure fluid tightness and long service life. The fittings set is continuously updated to cover new vehicle requirements. Additional hoses and specialised adapters are available as accessories.

Technical specifications

• SKU: T02.002.00
• Model: Speed 2000
• Type: Automatic ATF machine for transmission service
• Construction: Painted steel
• Filter: 10 µm
• Pump: Variable-speed / variable-flow pump
• Display: Alphanumeric matrix display
• Functions: Oil weighing, automatic filling and draining, automatic level management, additive insertion, flow recognition, flowmeter
• Software: Temperature measurement, new/used oil weighing, refill/drain quantities, overpressure prevention
• Database: TopAuto online (>150,000 vehicle models)
• Connectors: Approx. 110 metal connectors/adapters
• Production: Made in Italy
• Other: Diagnostic test mode; estimated remaining time display; audible anomaly alerts
