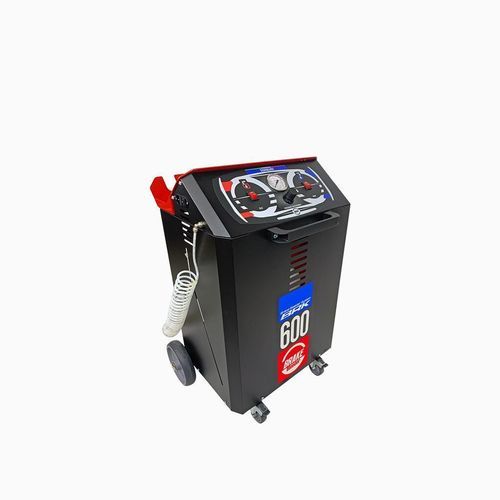

Brake/clutch bleeder BRK 600

Product overview
Automatic brake bleeder BRK 600 for replacement and management of braking system fluids. Mobile unit on trolley with two pumps for delivery and return, two 3 m spiral hoses and integrated extraction and collection functions.

Documentation
Product sheet (PDF) available.

Compatible fluids

• PreDOT
• DOT 2
• DOT 3
• DIT 4
• DOT 5
• DOT 5.1
• DOT 6
• DOT 6.1
• LHM

Tanks & capacities

• New liquid tank: 5 L (expandable up to 25 L)
• Used fluid tank: 5 L (transparent collection tank)

Key technical data

• SKU: T15.001.01
• Operating pressure: 0–4 bar
• Pump flow: 1 L/min
• Charging pipe length: 7.5 m
• Suction pipe length: 7.5 m
• Power supply cable length: 3 m
• Power supply: 230 V / 50–60 Hz
• Noise level: < 70 dB
• Dimensions (WxDxH): 67 x 54 x 90 cm
• Weight: 35 kg

Product features

• Two pumps: delivery and return
• Two 3 m spiral hoses for extraction and filling
• Predisposition for larger new liquid tank (up to 25 L)
• Trolley with large wheels for mobility
• Fluid tank washing system for complete extraction
• Integrated extraction pump and filter protecting the pump

Operation & maintenance
Pressure reading via manometer and adjustment through a locking pressure regulator. Extracted fluid collected in transparent tank for inspection. Integrated filter protects the pump from residues. Unit configured for continuous workshop use and easy handling on different vehicle types.
