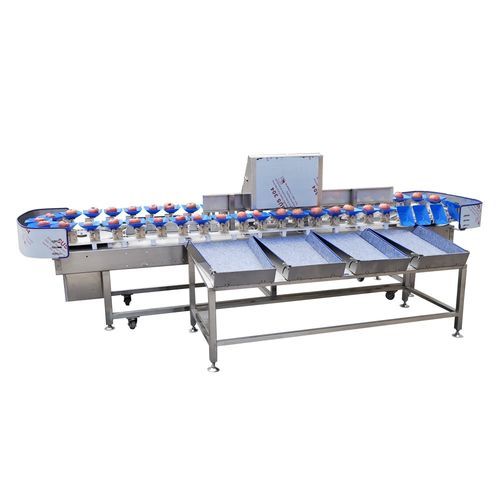

Food product checkweigher FX series

for food contactfor stainless steelfor hygienic applications

Introduction:
Automatic weight sorting machine using dynamic weighing sensor technology to perform rapid weighing, multi-grade classification and rejection of non-conforming items, reducing manual handling and labor costs.

Core Advantages:

• High-precision weighing: stable dynamic operation with precise measurements to ensure compliance with net-weight requirements (accuracy ±0.5 g).
• High-speed sorting: configurable multi-grade classification supporting production lines with varying throughput needs.
• Intelligent control: touchscreen interface for one-touch parameter setting, recipe storage and data logging.
• Hygienic, durable construction: SUS304 stainless steel frame with waterproof and dustproof design suitable for continuous operation in humid or dusty production environments.

Applications:

• Verification of net content for packaged foods (e.g., instant noodles, mooncakes).
• Weight grading of fruits, vegetables, seafood (fish, sea cucumber), poultry and meat products.
• Inspection and sorting in other non-food industries requiring weight-based classification.

Technical specifications:

• Model: FX041
  Power: 0.75 kW
  Overall size: 3400*900*1450 mm
  Grades: 4+1
  Main material: SUS304 stainless steel
  Accuracy: ±0.5 g
  Weight range: 1 g - 3000 g
• Model: FX051
  Power: 0.75 kW
  Overall size: 3800*900*1450 mm
  Grades: 5+1
  Main material: SUS304 stainless steel
  Accuracy: ±0.5 g
  Weight range: 1 g - 3000 g
• Model: FX061
  Power: 0.75 kW
  Overall size: 4200*900*1450 mm
  Grades: 6+1
  Main material: SUS304 stainless steel
  Accuracy: ±0.5 g
  Weight range: 1 g - 3000 g
• Model: FX071
  Power: 0.75 kW
  Overall size: 4600*900*1450 mm
  Grades: 7+1
  Main material: SUS304 stainless steel
  Accuracy: ±0.5 g
  Weight range: 1 g - 3000 g
• Model: FX081
  Power: 0.75 kW
  Overall size: 5000*900*1450 mm
  Grades: 8+1
  Main material: SUS304 stainless steel
  Accuracy: ±0.5 g
  Weight range: 1 g - 3000 g
