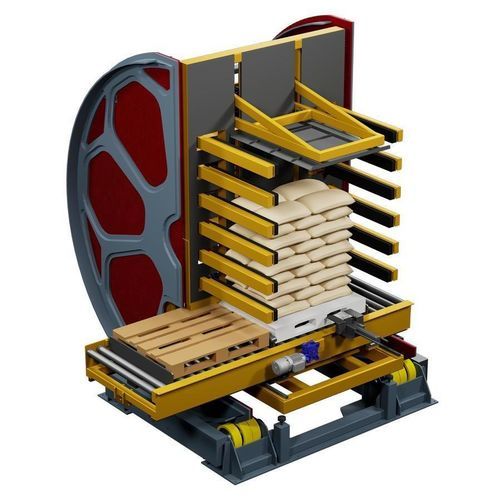

Automated pallet changer Pac-Man

tiltingwith independant powered transfer shuttle

Pac-Man is a fully automatic pallet changer by Toppy, designed to replace pallets under load without manual intervention and to integrate into automated production lines and warehouses.


Main features

• Extremely fast automatic pallet changer: up to 120 pallets/hour
• No hydraulic components, powered by electric motors
• Patented APS (Automatic Pallet System) that doubles the performance of competing pallet changers
• Extendable arms for greater product stability if necessary.
• Variable tilt angles (from 90 to 180) to adapt to different types of products.
• Designed and manufactured to adapt to customer requirements

Operation

• The load and a new empty pallet are placed inside the Pac-Man; the unit performs a controlled tilt.
• The lower platform opens to separate the used pallet from the load while the APS positions the new pallet under the load.
• The system then centers the product on the new pallet and the roller conveyors eject the pallets.

Features / Technical specifications

• Pallet dimensions: any type
• Capacity: up to 1200 kg.
• Performance: up to 120 pallets/hour
• Variable tilt angles: from 90 to 180.
• Power supply: fully electric.

Integration and customization

• Can be integrated into automated transport systems, rollers, and warehouse configurations.
• Options for control interfaces, safety devices, and specific load clamps.
