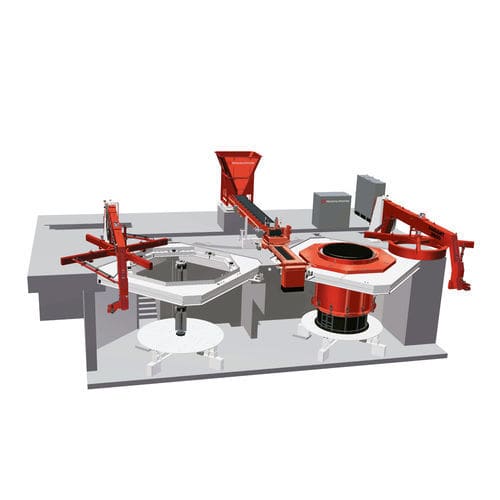

Production plant for the construction industry VARIANT

for concretemanholefor pipes

VARIANT production is a high level efficient process for a combination of products that need to be produced in large numbers to meet market demand. The VARIANT can be configured with a single station or two for a greater output rate with the flexibility to produce concrete pipe and manhole side by side. PRODUCT CAPABILITIES -The incorporated vibration and compaction technology is a developed design that is sufficiently powerful enough for -large products. -The VARIANT utilizes a pit installed vibrator unit which reduces noise levels. -The easy operated system supports quick mould exchange by hydraulic core clamping with up to five locations. -This manufacturing process improves your production capabilities for large concrete products having high strength and exact specifications. Capacity data Product dimensions - max. outer Ø 6.000 mm min. inner Ø 250 mm Lengths - 250 – 5000 mm Product weight max. - 30 t Cycle times - 3 – 25 min
