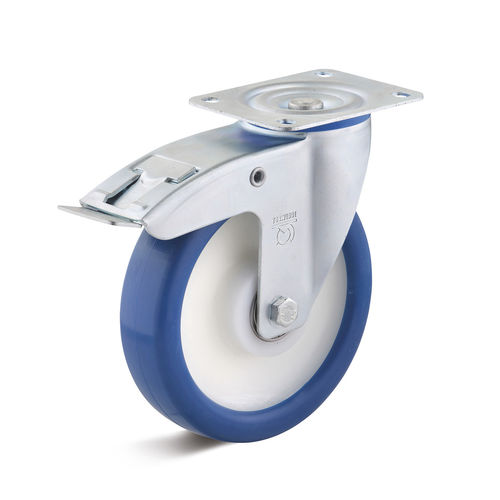

Swivel caster base platewith brakefor medium loads
Add to favorites
Compare this product
Characteristics
- Type
- swivel
- Mount
- base plate
- Other characteristics
- with brake, for medium loads, light-duty, polyurethane, polyamide, galvanized steel
- Load capacity
Min.: 150 kg
(331 lb)Max.: 450 kg
(992 lb)- Wheel diameter
Min.: 80 mm
(3.15 in)Max.: 250 mm
(9.843 in)- Tread width
Min.: 35 mm
(1.38 in)Max.: 50 mm
(1.97 in)
Description
Standard castor with polyurethane wheel
- polyamide 6 wheel body with ball bearing
- polyurethane tread, approx. 95° shore A
- standard steel sheet housing, galvanized
Torwegge‘s standard housings are made from deep-drawn, galvanized steel sheet. The solid-riveted, double ball
bearing in the slewing ring delivers an advantageous price-performance ratio when used for hand-held logistics
applications. Castors in standard housing are commonly used by a variety of sectors in transport racks. They can
carry a max. load of 1,200 kg at 4 km/h.
The material polyurethane (PU) has a high load capacity with low abrasion. It also features high chemical resistance.
These properties make polyurethane suitable for almost any application.
Model article number: 0029794
