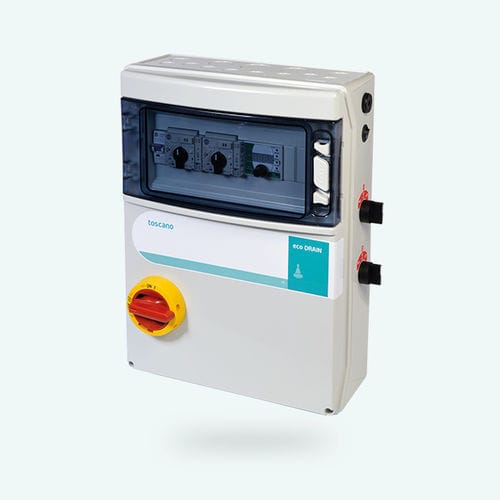

Immersed pump controller ECO-Drain-2

electronicmodular

Control and protection panel for 2-pump lifting stations, single-phase / three-phase, up-to 20A, multicontrol. - Easy and intuitive setting. - Includes electronic control module TPM-Drain-2. - Control of 2 pumps with alternation. - Control by buoys or 4-20mA sensor. - Sequential start, and relay for pump failure or override. - Protections: MPCB and overload per pump, motor overheating (klixon), dry operation, anti-blocking. - Digital display (amps, level, operation hours, no. of starts, alarms, settings, downtime, assistance). - 90db acoustic alarm. - Intelligent detection of failure and float switch / sensor connection. - Adjustable limit on operation time. - Optional 9V battery (up to 15h). Codes and references - 10002820 1.6...2.5A - 10002821 2.5...4A - 10002823 4...6.3A - 10002824 6.3...10A - 10002739 10...16A - 10002825 14.5...20A - 10002633 ECO-DRAIN-BATTERY (optional battery) Specifications - Power: 230 and 400VAC, ±20%, 50-60Hz (single/three-phase) - Maximum pump current: 2.5A, 4A, 6.3A, 10A, 16A and 20A - AC3 - Signaling and control: Pumps in operation, buoy status, pump failure, alarm. Voltage-free contact (GSM), 24VAC voltage (alarm) - Maximum cable section in terminals: 10mm² (power), 4mm² (control) - Glands configuration: 1xM25 (power), 2xM20 (motor), 6xM16 (control) - Dimensions (mm) / protection level: 436 x 310 x 147 / IP65 - Protection and control module: TPM-DRAIN-2
