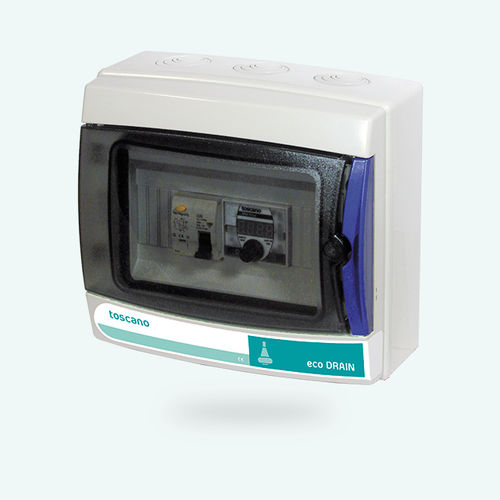

Digital modular protection and control panel for 1-pump lifting stations, single-phase / three-phase, up to 16A, multi-control.
- Very easy and intuitive operation.
- Includes electronic control module TPM-DRAIN.
- Control of 1 pump, with or without integrated float switch.
- Control by level float switches or probes.
- Protections: circuit breaker, overload, underload, phase loss, dry operation, anti-blocking.
- Digital display (amps, operation hours, no. of starts, alarms, settings, downtime).
- 90db acoustic alarm.
- Adjustable limit on operation time (float switch failure).
- Optional 9V battery (up to 15h).
Codes and references
- 10002575 ECO-DRAIN-230 (0...12A)
- 10002577 ECO-DRAIN-400 (0...16A)
- 10002633 ECO-DRAIN-BATTERY (optional battery)
Specifications
- Power: 230 or 400VAC, ±20%, 50-60Hz (single/three-phase)
- Maximum pump current: 12A (1-ph), 16A (3-ph) – AC3
- Signaling and control: Pump in operation, high level, alarm
- Maximum cable section in terminals: 10mm² (power), 4mm² (control)
- Glands configuration: 1xM20 (power), 1xM20 (motor), 1xM20 (control)
- Dimensions (mm) / protection level: 215 x 235 x 110 / IP65
- Protection and control module: TPM-DRAIN
